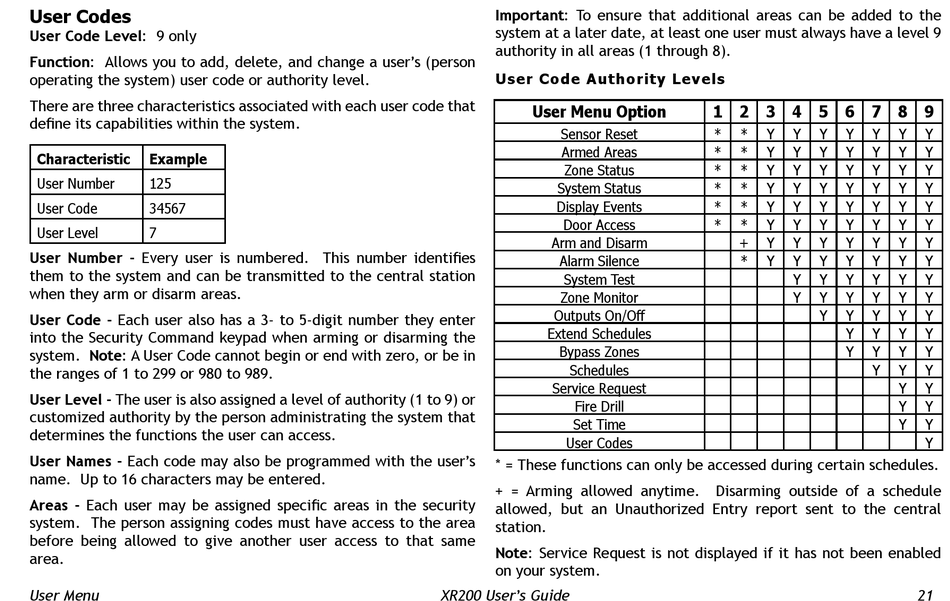

User Codes
User Code Level: 9 only
Function: Allows you to add, delete, and change a user's (person
operating the system) user code or authority level.
There are three characteristics associated with each user code that
deÞ ne its capabilities within the system.
Characteristic
Example
User Number
125
User Code
34567
User Level
7
User Number - Every user is numbered. This number identiÞ es
them to the system and can be transmitted to the central station
when they arm or disarm areas.
User Code - Each user also has a 3- to 5-digit number they enter
into the Security Command keypad when arming or disarming the
system. Note: A User Code cannot begin or end with zero, or be in
the ranges of 1 to 299 or 980 to 989.
User Level - The user is also assigned a level of authority (1 to 9) or
customized authority by the person administrating the system that
determines the functions the user can access.
User Names - Each code may also be programmed with the user's
name. Up to 16 characters may be entered.
Areas - Each user may be assigned speciÞ c areas in the security
system. The person assigning codes must have access to the area
before being allowed to give another user access to that same
area.
User Menu
Important: To ensure that additional areas can be added to the
system at a later date, at least one user must always have a level 9
authority in all areas (1 through 8).
User Code Authority Levels
User Menu Option
Sensor Reset
Armed Areas
Zone Status
System Status
Display Events
Door Access
Arm and Disarm
Alarm Silence
System Test
Zone Monitor
Outputs On/Off
Extend Schedules
Bypass Zones
Schedules
Service Request
Fire Drill
Set Time
User Codes
* = These functions can only be accessed during certain schedules.
+ = Arming allowed anytime.
allowed, but an Unauthorized Entry report sent to the central
station.
Note: Service Request is not displayed if it has not been enabled
on your system.
XR200 User's Guide
1 2 3 4 5 6 7 8 9
*
*
Y
Y
Y
Y
Y
*
*
Y
Y
Y
Y
Y
*
*
Y
Y
Y
Y
Y
*
*
Y
Y
Y
Y
Y
*
*
Y
Y
Y
Y
Y
*
*
Y
Y
Y
Y
Y
+
Y
Y
Y
Y
Y
*
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Disarming outside of a schedule
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
21
