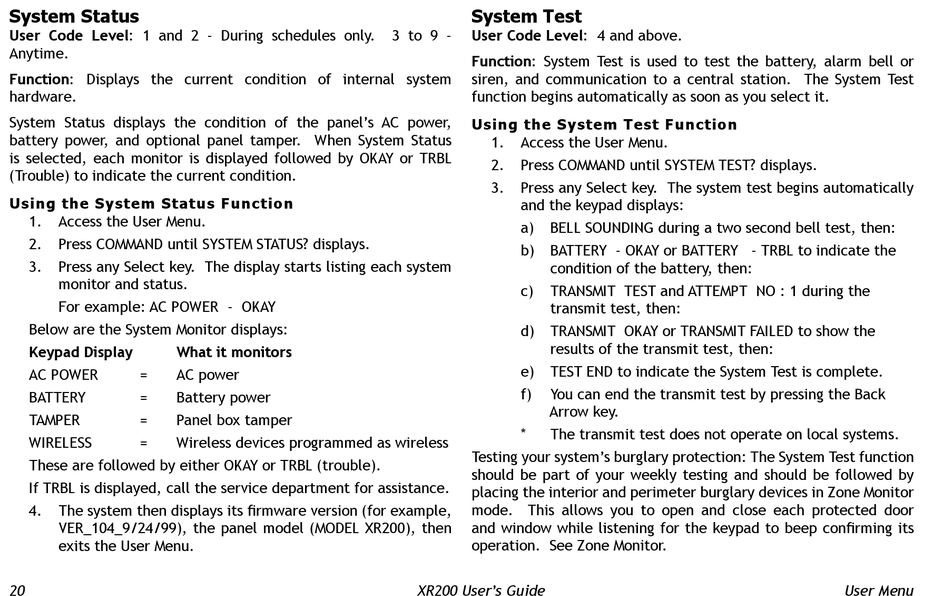

System Status

User Code Level: 1 and 2 - During schedules only.
Anytime.
Function: Displays the current condition of internal system
hardware.
System Status displays the condition of the panel's AC power,
battery power, and optional panel tamper. When System Status
is selected, each monitor is displayed followed by OKAY or TRBL
(Trouble) to indicate the current condition.
Using the System Status Function
1. Access the User Menu.
2. Press COMMAND until SYSTEM STATUS? displays.
3. Press any Select key. The display starts listing each system
monitor and status.
For example: AC POWER - OKAY
Below are the System Monitor displays:
Keypad Display What it monitors
AC POWER = AC power
BATTERY = Battery power
TAMPER = Panel box tamper
WIRELESS = Wireless devices programmed as wireless
These are followed by either OKAY or TRBL (trouble).
If TRBL is displayed, call the service department for assistance.
4. The system then displays its Þ rmware version (for example,
VER_104_9/24/99), the panel model (MODEL XR200), then
exits the User Menu.
20

System Test

3 to 9 - User Code Level: 4 and above.
Function: System Test is used to test the battery, alarm bell or
siren, and communi cation to a central station. The System Test
function begins automatically as soon as you select it.
Using the System Test Function
1. Access the User Menu.
2. Press COMMAND until SYSTEM TEST? displays.
3. Press any Select key. The system test begins automatically
and the keypad displays:
a) BELL SOUNDING during a two second bell test, then:
b) BATTERY - OKAY or BATTERY - TRBL to indicate the
condition of the battery, then:
c) TRANSMIT TEST and ATTEMPT NO : 1 during the
transmit test, then:
d) TRANSMIT OKAY or TRANSMIT FAILED to show the
results of the transmit test, then:
e) TEST END to indicate the System Test is complete.
f) You can end the transmit test by pressing the Back
Arrow key.
* The transmit test does not operate on local systems.
Testing your system's burglary protection: The System Test function
should be part of your weekly testing and should be followed by
placing the interior and perimeter burglary devices in Zone Monitor
mode. This allows you to open and close each protected door
and window while listening for the keypad to beep conÞ rming its
operation. See Zone Monitor.
XR200 User's Guide User Menu
