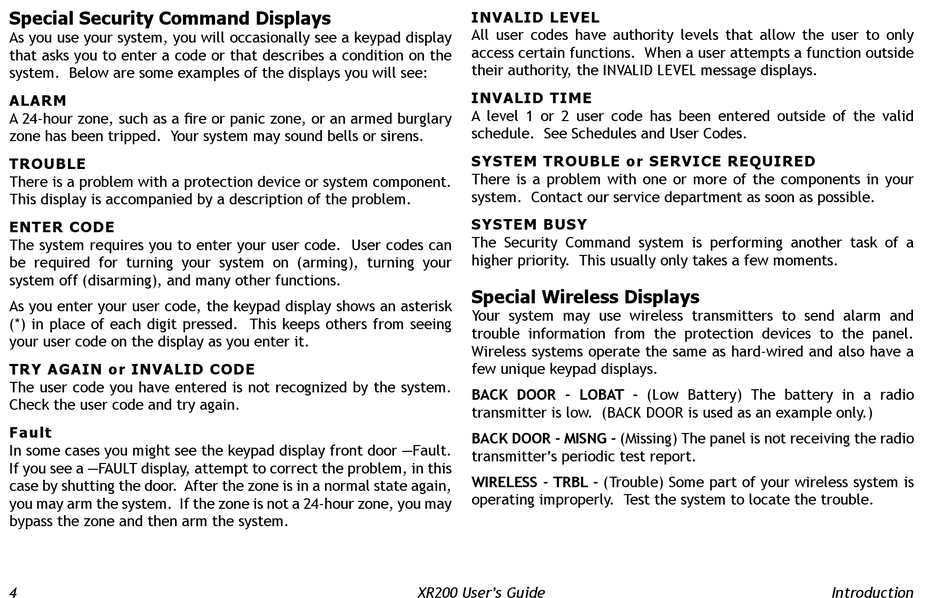

Special Security Command Displays

As you use your system, you will occasionally see a keypad display
that asks you to enter a code or that describes a condition on the
system. Below are some examples of the displays you will see:
ALARM
A 24-hour zone, such as a Þ re or panic zone, or an armed burglary
zone has been tripped. Your system may sound bells or sirens.
TROUBLE
There is a problem with a protection device or system component.
This display is accompanied by a description of the problem.
ENTER CODE
The system requires you to enter your user code. User codes can
be required for turning your system on (arming), turning your
system off (disarming), and many other functions.
As you enter your user code, the keypad display shows an asterisk
(*) in place of each digit pressed. This keeps others from seeing
your user code on the display as you enter it.
TRY AGAIN or INVALID CODE
The user code you have entered is not recognized by the system.
Check the user code and try again.
Fault
In some cases you might see the keypad display front door —Fault.
If you see a —FAULT display, attempt to correct the problem, in this
case by shutting the door. After the zone is in a normal state again,
you may arm the system. If the zone is not a 24-hour zone, you may
bypass the zone and then arm the system.
4
INVALID LEVEL
All user codes have authority levels that allow the user to only
access certain functions. When a user attempts a function outside
their authority, the INVALID LEVEL message displays.
INVALID TIME
A level 1 or 2 user code has been entered outside of the valid
schedule. See Schedules and User Codes.
SYSTEM TROUBLE or SERVICE REQUIRED
There is a problem with one or more of the components in your
system. Contact our service department as soon as possible.
SYSTEM BUSY
The Security Command system is performing another task of a
higher priority. This usually only takes a few moments.

Special Wireless Displays

Your system may use wireless transmitters to send alarm and
trouble information from the protection devices to the panel.
Wireless systems operate the same as hard-wired and also have a
few unique keypad displays.
BACK DOOR - LOBAT - (Low Battery) The battery in a radio
transmitter is low. (BACK DOOR is used as an example only.)
BACK DOOR - MISNG - (Missing) The panel is not receiving the radio
transmitter's periodic test report.
WIRELESS - TRBL - (Trouble) Some part of your wireless system is
operating improperly. Test the system to locate the trouble.
XR200 User's Guide
