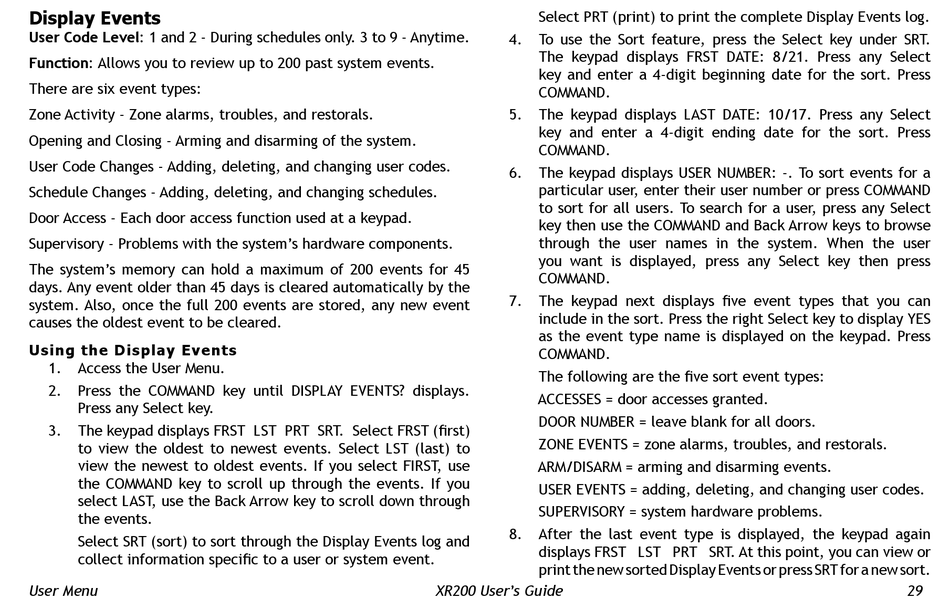

Display Events
User Code Level: 1 and 2 - During schedules only. 3 to 9 - Anytime.
Function: Allows you to review up to 200 past system events.
There are six event types:
Zone Activity - Zone alarms, troubles, and restorals.
Opening and Closing - Arming and disarming of the system.
User Code Changes - Adding, deleting, and changing user codes.
Schedule Changes - Adding, deleting, and changing schedules.
Door Access - Each door access function used at a keypad.
Supervisory - Problems with the system's hardware components.
The system's memory can hold a maximum of 200 events for 45
days. Any event older than 45 days is cleared automatically by the
system. Also, once the full 200 events are stored, any new event
causes the oldest event to be cleared.
Using the Display Events
1.
Access the User Menu.
2.
Press the COMMAND key until DISPLAY EVENTS? displays.
Press any Select key.
3.
The keypad displays FRST LST PRT SRT. Select FRST (Þ rst)
to view the oldest to newest events. Select LST (last) to
view the newest to oldest events. If you select FIRST, use
the COMMAND key to scroll up through the events. If you
select LAST, use the Back Arrow key to scroll down through
the events.
Select SRT (sort) to sort through the Display Events log and
collect information speciÞ c to a user or system event.
User Menu
Select PRT (print) to print the complete Display Events log.
4.
To use the Sort feature, press the Select key under SRT.
The keypad displays FRST DATE: 8/21. Press any Select
key and enter a 4-digit beginning date for the sort. Press
COMMAND.
5.
The keypad displays LAST DATE: 10/17. Press any Select
key and enter a 4-digit ending date for the sort. Press
COMMAND.
6.
The keypad displays USER NUMBER: -. To sort events for a
particular user, enter their user number or press COMMAND
to sort for all users. To search for a user, press any Select
key then use the COMMAND and Back Arrow keys to browse
through the user names in the system. When the user
you want is displayed, press any Select key then press
COMMAND.
7.
The keypad next displays Þ ve event types that you can
include in the sort. Press the right Select key to display YES
as the event type name is displayed on the keypad. Press
COMMAND.
The following are the Þ ve sort event types:
ACCESSES = door accesses granted.
DOOR NUMBER = leave blank for all doors.
ZONE EVENTS = zone alarms, troubles, and restorals.
ARM/DISARM = arming and disarming events.
USER EVENTS = adding, deleting, and changing user codes.
SUPERVISORY = system hardware problems.
8.
After the last event type is displayed, the keypad again
displays FRST LST PRT SRT. At this point, you can view or
print the new sorted Display Events or press SRT for a new sort.
XR200 User's Guide
29
