Transfer the 4-port card

If you are replacing the embedded module, remove the 4-port card from the old embedded module and install it into the new
embedded module. Do not transfer the 4-port card while replacing a SP assembly.
Remove a 4-port card
Steps
1. Remove the SFPs from the front of the embedded module.
2. Remove the air dam at the front of the embedded module by loosening the four captive screws.
3. Push down the two blue tabs on the back of the 4-port card to release the 4-port card.

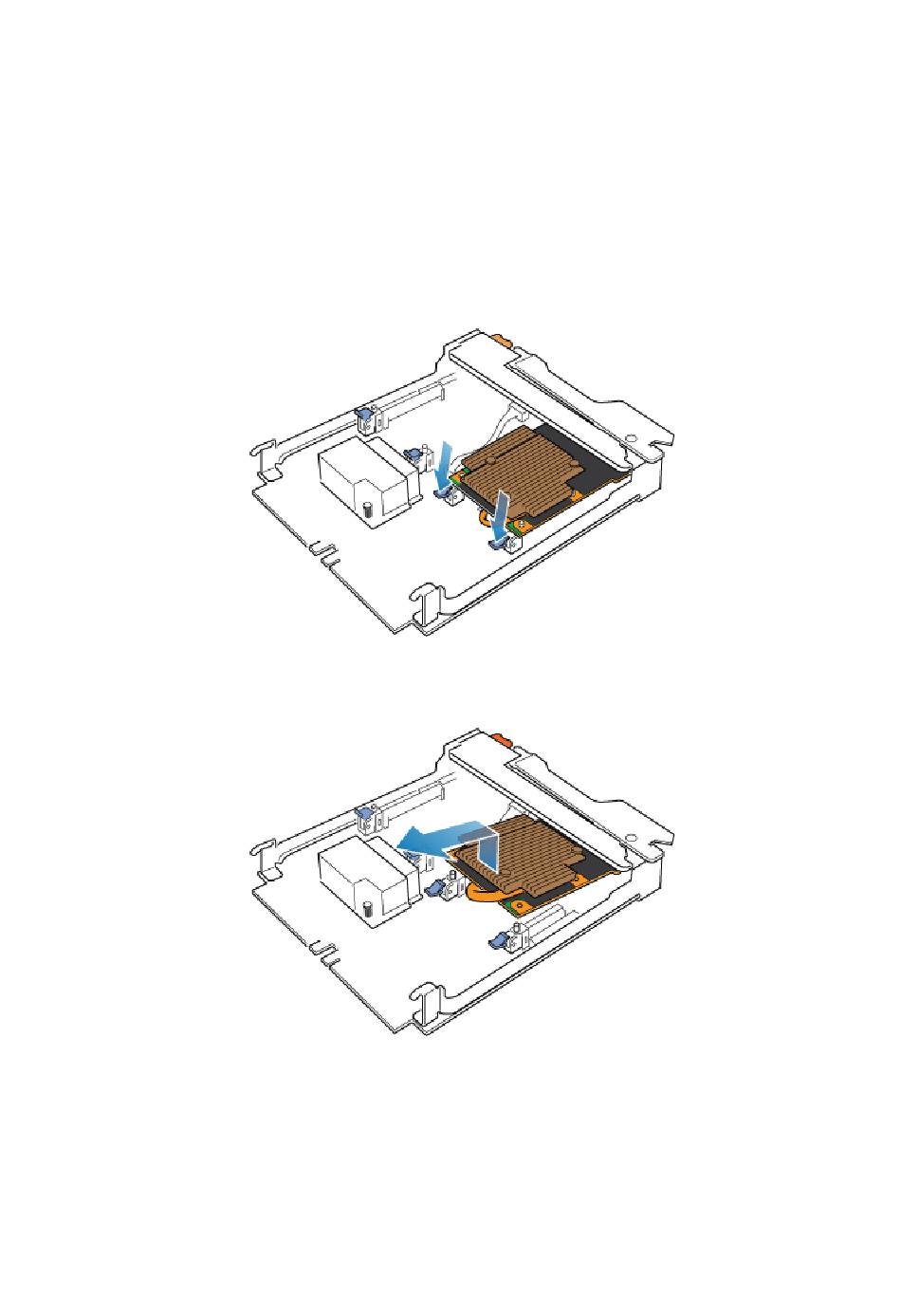

Figure 39. Opening the retaining tabs
4. Lift the 4-port card off the pegs, and pull the 4-port card away from the embedded module.
Figure 40. Removing the 4-port card
Install a 4-port card
Steps
1. Align the 4-port card in the embedded module so that the ports on the front line up with the slots on the front of the
embedded module.
