DPE power supply LEDs

Use the fault LEDs to identify the faulted part.

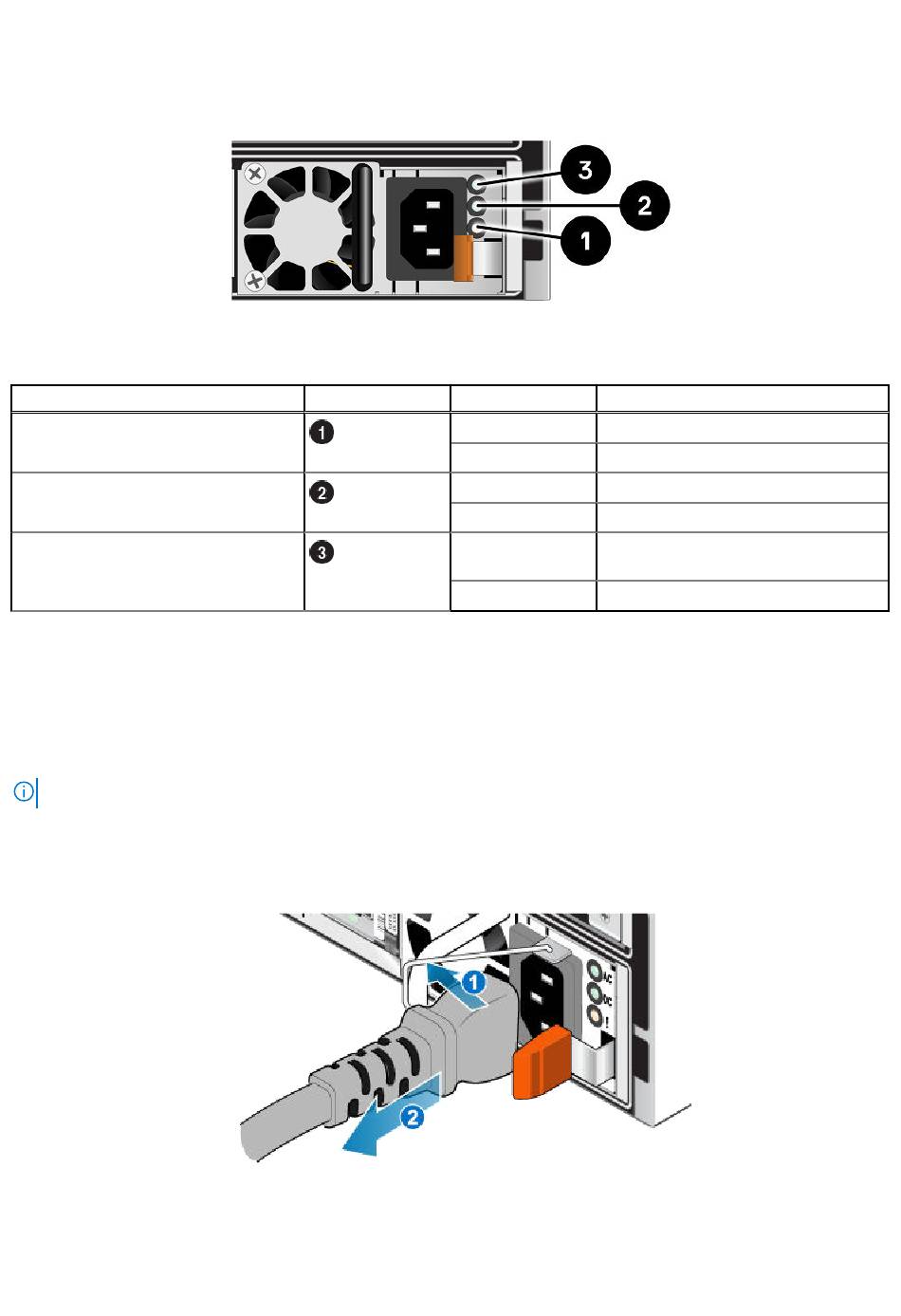

Figure 31. DPE power supply LEDs
Table 3. DPE power supply LEDs
LED
AC power (input)
DC power (output)
Fault

Remove a power supply

About this task
There are two power supplies. The power supplies are installed in the top and bottom SP assembly, and the top power supply
is installed upside-down. This procedure works for removing either power supply, however, the direction in which the release
handle is pressed is to the left for the bottom power supply, and to the right for the top power supply.
NOTE: You do not need to power down the system to remove a power supply.
Steps
1. Rotate the power cable retention bail to the left (to the right for the bottom power supply). Remove the power cable from
the power supply.
Figure 32. Removing the power cable
38 Service Procedures
Location State
Green
Off
Green
Off
Solid amber
Off
Description
AC power is on.
AC power is off. Verify source power
DC power is on.
DC power is off. Verify source power.
Power supply or backup fault. Check
cable connection.
No fault.
