CL5845

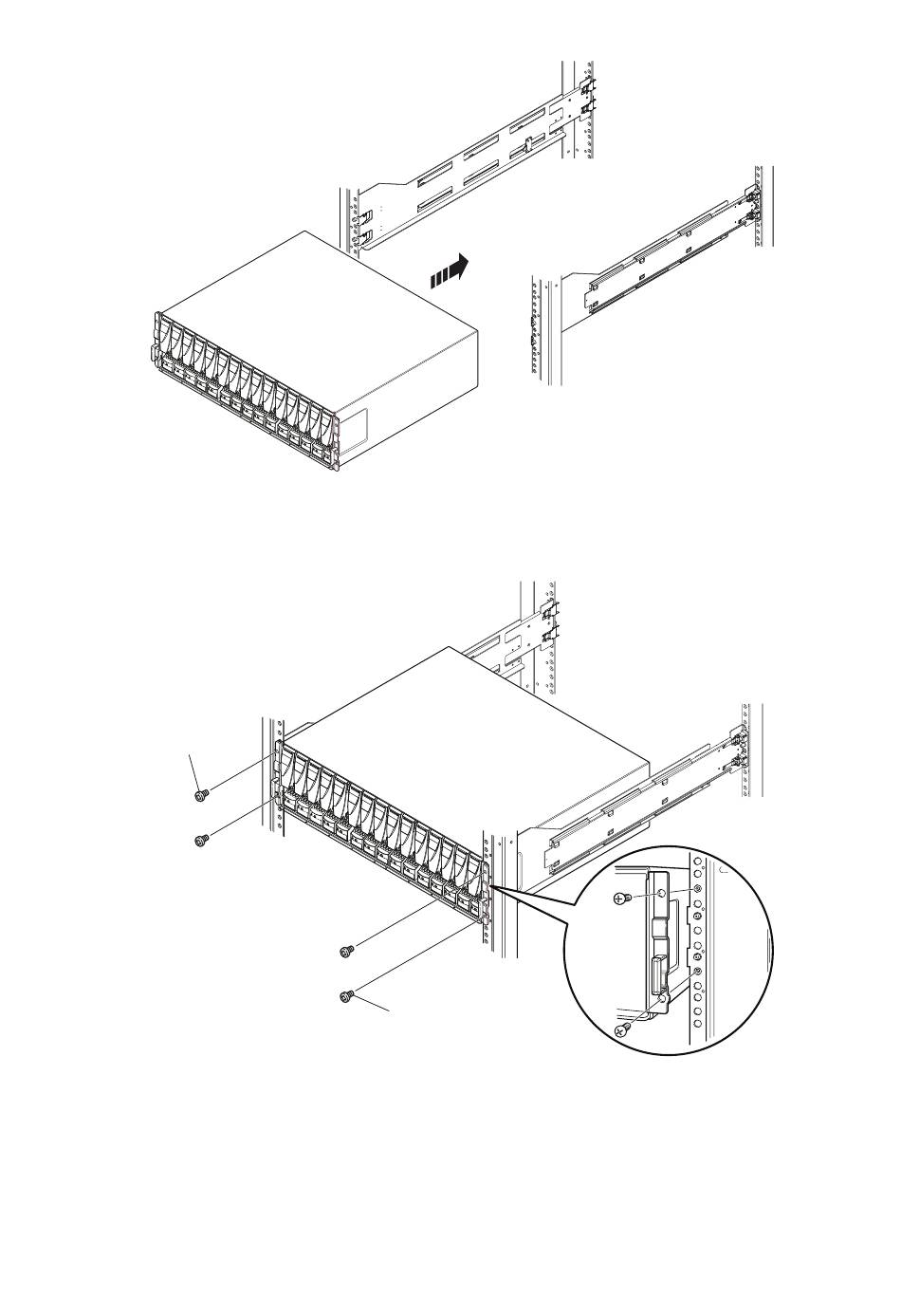

Figure 14. Sliding the enclosure onto the rails
2. Once the enclosure is completely seated into the rear tabs, secure the front of the enclosure to the front vertical channels
with four screws (two per side), but do not tighten the screws until they are all in place.
Rear
Screws (2)
Front
Screws (2)
CL5846
Figure 15. Securing the front of the enclosure
Installation Procedures
25
