Figure 88. Removing the top cover

Remove the faulted dual inline memory module

Steps
1. Locate the faulted DIMM in the SP assembly.
The DIMMs are identified by white or black retaining tabs.
2. Depress the white or black retaining tabs downward to free the DIMM from its slot.
3. Remove the faulted DIMM.

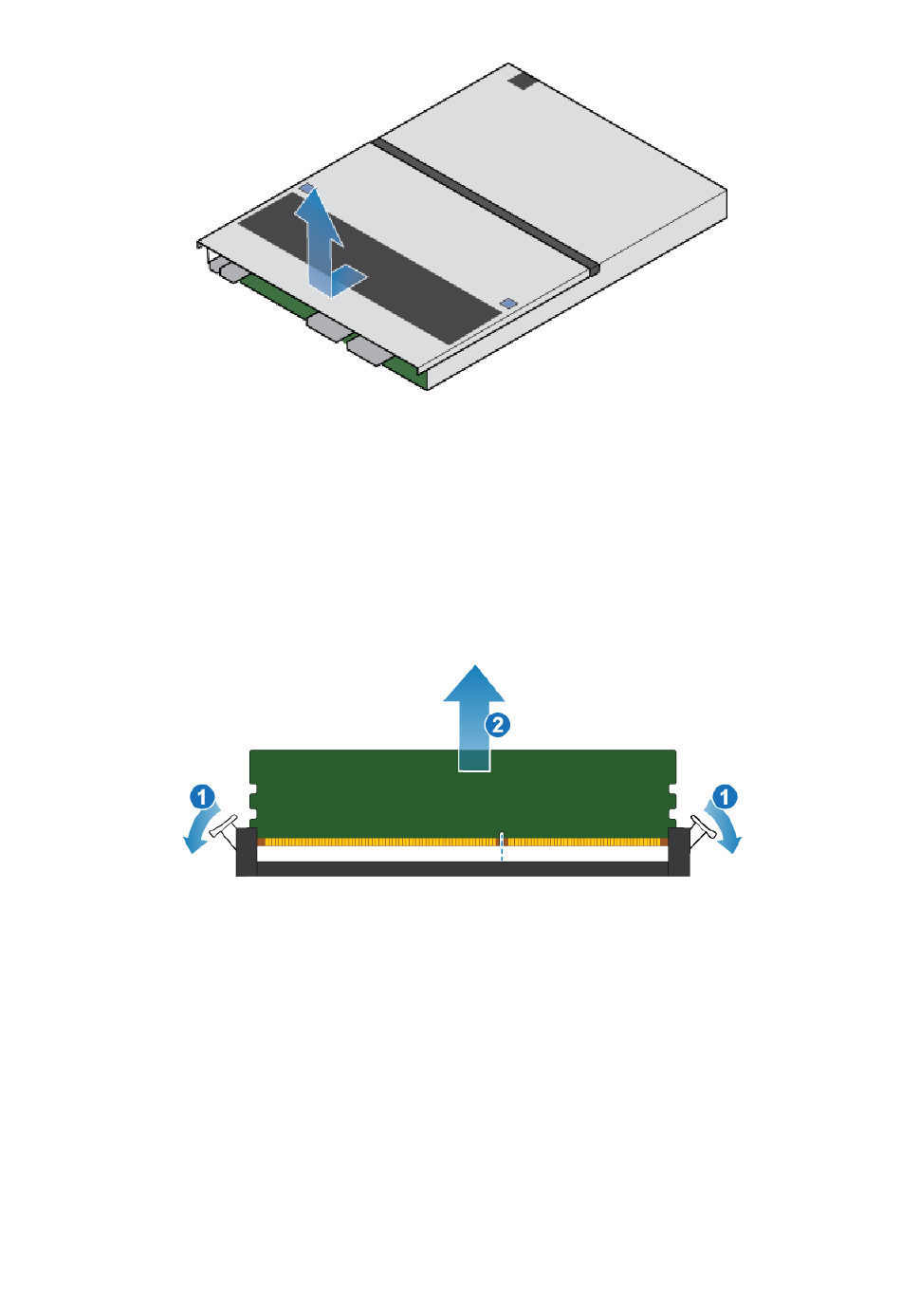

Figure 89. Removing the DIMM

Install the dual inline memory module

Steps
1. Touching only the outside edges of the DIMM, align the DIMM with the connector.
2. Firmly push the carrier straight down into the connector.
When the DIMM is fully seated, you will hear a snap, and feel the connector latches click into place.
