Verifying the operation of the new part in Unisphere

Verify that the new part is recognized by your system, and operating correctly.
Steps
1. In Unisphere, select System View.
2. On the Summary page, confirm that the system status is OK.
3. Select the Enclosures page.
4. Verify that the part appears with the OK status in the enclosure view. You may need to refresh Unisphere by clicking on the
refresh icon next to the Enclosures view.
If the system health monitor shows the part as faulted, contact your service provider.

Add an SFP

Take the following actions to add a new SFP into the system.

Install an SFP module

Steps
1. Push the spring release latch up and slide the SFP module into the port until it is securely connected.

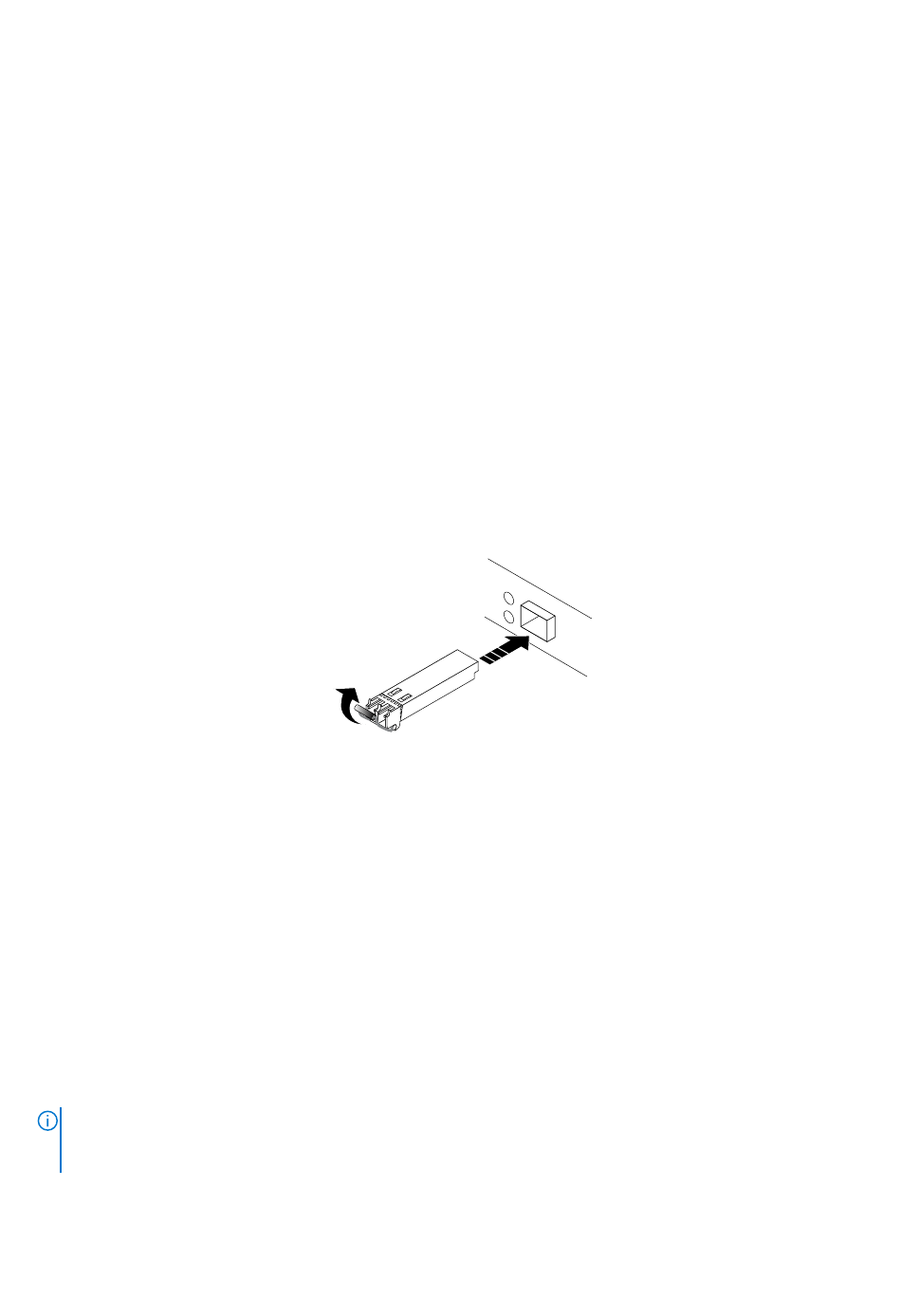

Figure 60. Installing an SFP module
2. Push the spring release down to lock the SFP module into place.
3. Reconnect the cable to the SFP module.
Example

Committing the new I/O ports

About this task
You must commit the new I/O ports before they can be used.
Steps
1. In Unisphere, select System View.
2. Select the DPE and select Commit IO Ports.
NOTE: Committing I/O ports requires multiple reboots of the SPs and may take up to an hour to complete. You can
find I/O ports commit and SP reboot status details on Service > Logs. During these reboots you will temporarily lose
Unisphere connectivity.
After this process completes, the new I/O ports have been successfully committed into the system.
