This section calls out only the LEDs that you need to verify to ensure that the system powered up correctly.
NOTE: The Unity Hardware Information Guide provides more details on all system LEDs.
The array is powered up and ready to run the Connection Utility when the SP Fault LED shows intervals of amber for one
second and blue for three seconds. If the system is on a network with a DNS server and DHCP, the management IP address can
be assigned automatically. When it is assigned, the SP Fault LED is solid blue. Ensure that the power-up is complete and that the
system is ready before you continue.
DPE rear status LEDs

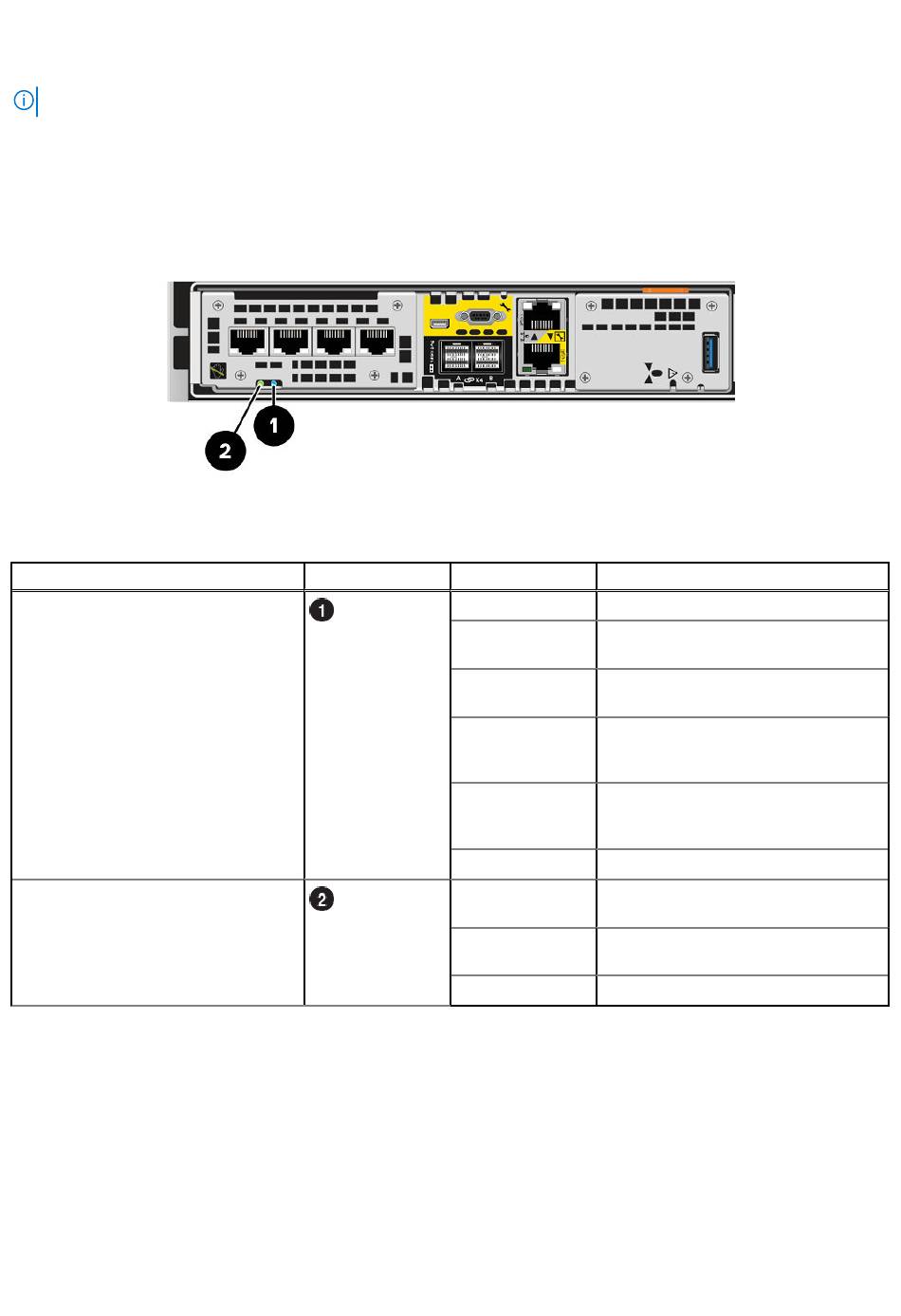

Figure 7. Storage processor assembly LEDs
Table 1. Storage processor assembly LEDs
LED
Storage processor assembly fault
Storage processor assembly power
Location State
Amber
Blue
Amber or blue
blinking
Blue and amber
alternating (blue
for 3 seconds)
Blue and amber
alternating at one
second intervals
Off
Green
Green blinking
Off
Description
Fault has occurred.
A management IP address has been
assigned.
System is booting.
System not initialized. A management IP
address has not been assigned.
Storage processor assembly in Service
Mode.
No fault has occurred, normal operation.
Storage processor assembly is on (main
power).
Storage processor assembly is initializing
a serial over LAN session.
Storage processor assembly is off.
