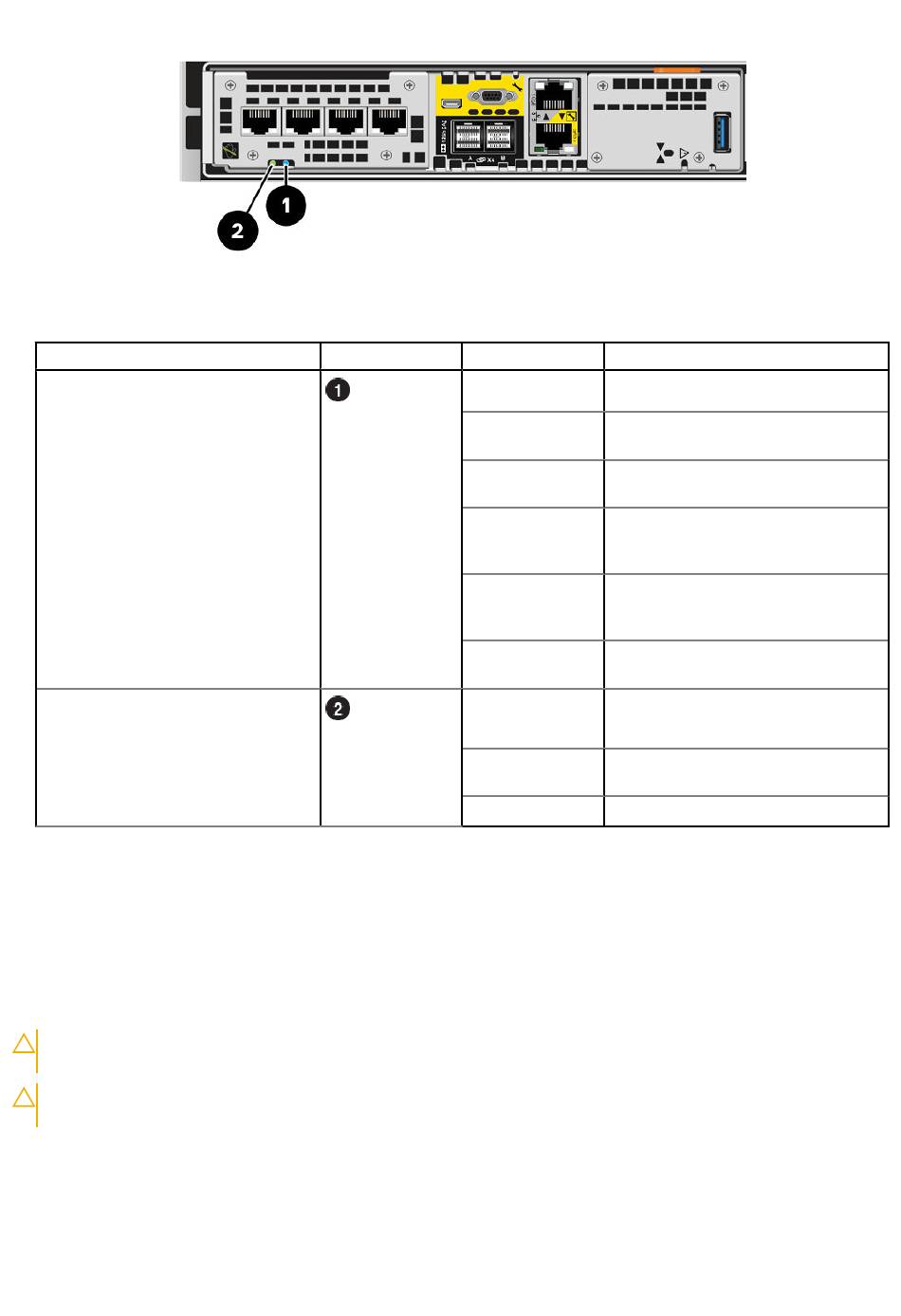

Figure 109. Storage processor assembly LEDs
Table 10. Storage processor assembly LEDs
LED
Storage processor assembly fault
Storage processor assembly power
Remove the SP assembly
This procedure describes how to remove a SP assembly from the chassis. There are two SP assemblies. The top SP assembly
is considered to be upside-down and mirrors the bottom SP assembly. The illustration shows the removal of the bottom SP
assembly. The procedure for removing the top SP assembly is the same.
About this task
CAUTION:
Do not remove a SP assembly while its "Unsafe to remove" LED is lit. The location of this LED is
described in
Embedded module
CAUTION:
Because SP assembly include cooling fans, they should be removed for as short a time as possible. Do
not remove SP assemblies from a live system unless replacement parts are available.
Steps
1. Rotate the power cable retention bail to the left (right for top power supply). Disconnect the power cable from the power
supply.
Location
LEDs. If the LED is lit, the SP assembly has not been properly shut down.
State
Description
Amber
Fault has occurred.
Blue
A management IP address has been
assigned.
Amber or blue
System is booting.
blinking
Blue and amber
System not initialized. A management
alternating (blue
IP address has not been assigned.
for 3 seconds)
Blue and amber
Storage processor assembly in Service
alternating at one
Mode.
second intervals
Off
No fault has occurred, normal
operation.
Green
Storage processor assembly is on (main
power).
Green blinking
Storage processor assembly is
initializing a serial over LAN session.
Off
Storage processor assembly is off.
Service Procedures
93
