Secure the system in the cabinet
Steps
If securing the system for shipment in the cabinet or in other unstable environments, locate the hard mount captive screw under
each latch and tighten using a #1 Phillips screwdriver.

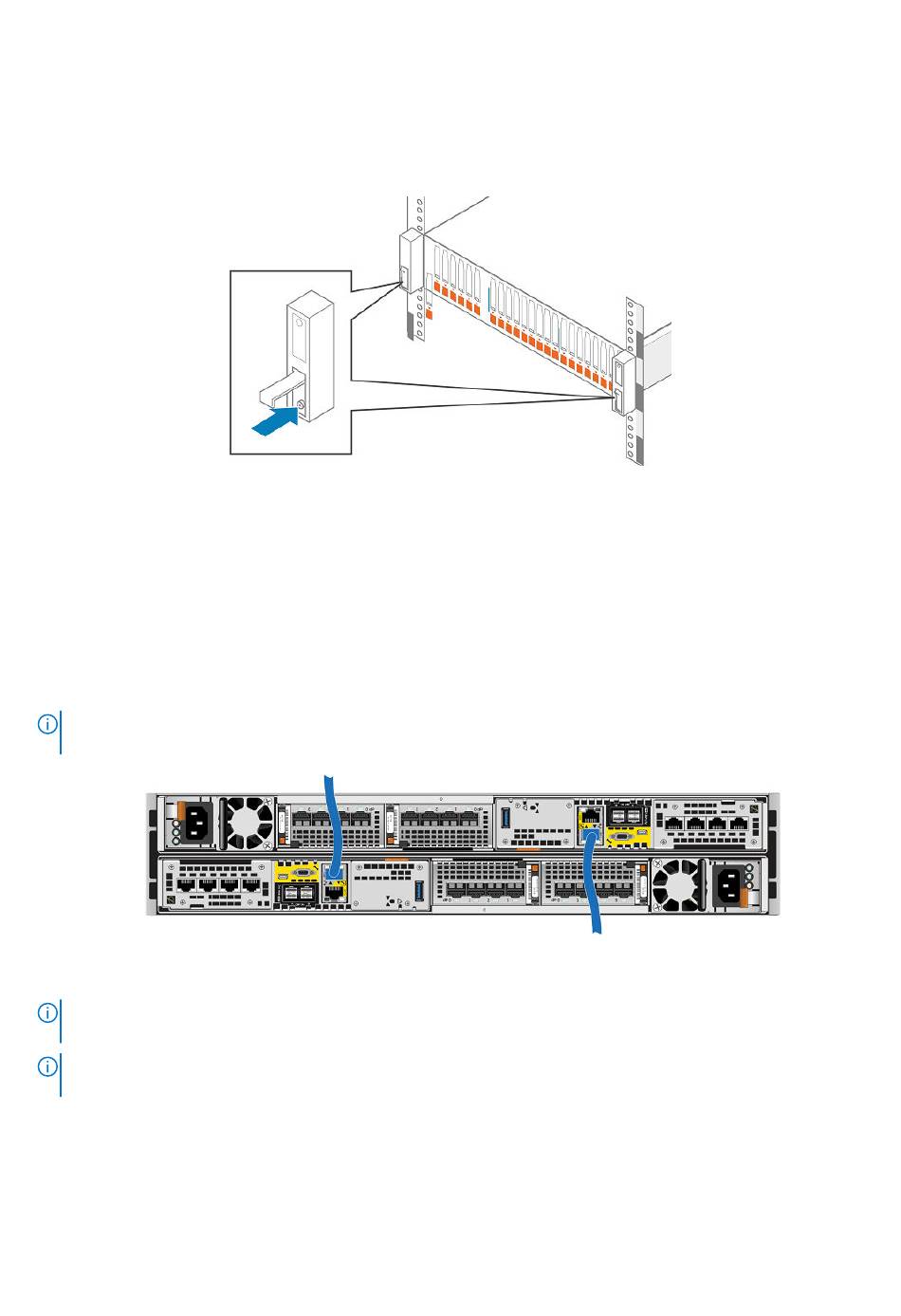

Figure 4. Securing the system in the cabinet
Attach the storage processors to the network
Steps
1. Locate two bulk Category (CAT) 5, 5e, 6, 6a or better Ethernet cables.
2. Connect two Ethernet cables from the LAN to the 1 Gb RJ45 management ports from which you will configure the system.
This will be one port on each storage processor.
NOTE:
The SP A and SP B network management ports must be connected on the same subnet. In general, both SPs
should have mirrored configurations in order to provide failover.
Figure 5. Cabling the storage processors to the network
NOTE:
Once the management cables are plugged into each SP, do not remove them unless instructed to do so by
Service, or in order to perform maintenance on the system as instructed by the maintenance procedure.
NOTE:
Additional information about the ports and cabling is in the Hardware Information Guide, available on the Unity
Info Hub at
https://www.dell.com/unitydocs
Install optional DAEs
If you are installing one or more optional DAEs, see
or on Online Support (https://www.dell.com/support).
Unpack the (optional) disk-array enclosures
for installation instructions.
Installation Procedures
13
