Identify the location for the new 4-port card

Ensure that you install the new 4-port card in the correct location.
Install the new 4-port card in slot 0 within the embedded module. When looking at the embedded module from the front, slot 0
is on the left side of the embedded module.

Install a 4-port card

Steps
1. Remove the air dam at the front of the embedded module.
2. Align the 4-port card in the embedded module so that the ports on the front line up with the slots on the front of the
embedded module.
3. Align the white pegs beneath the holes on the 4-port card.
CAUTION: Do not force the 4-port card into place. If the 4-port card does not smoothly seat, re-align the
pegs and try again.

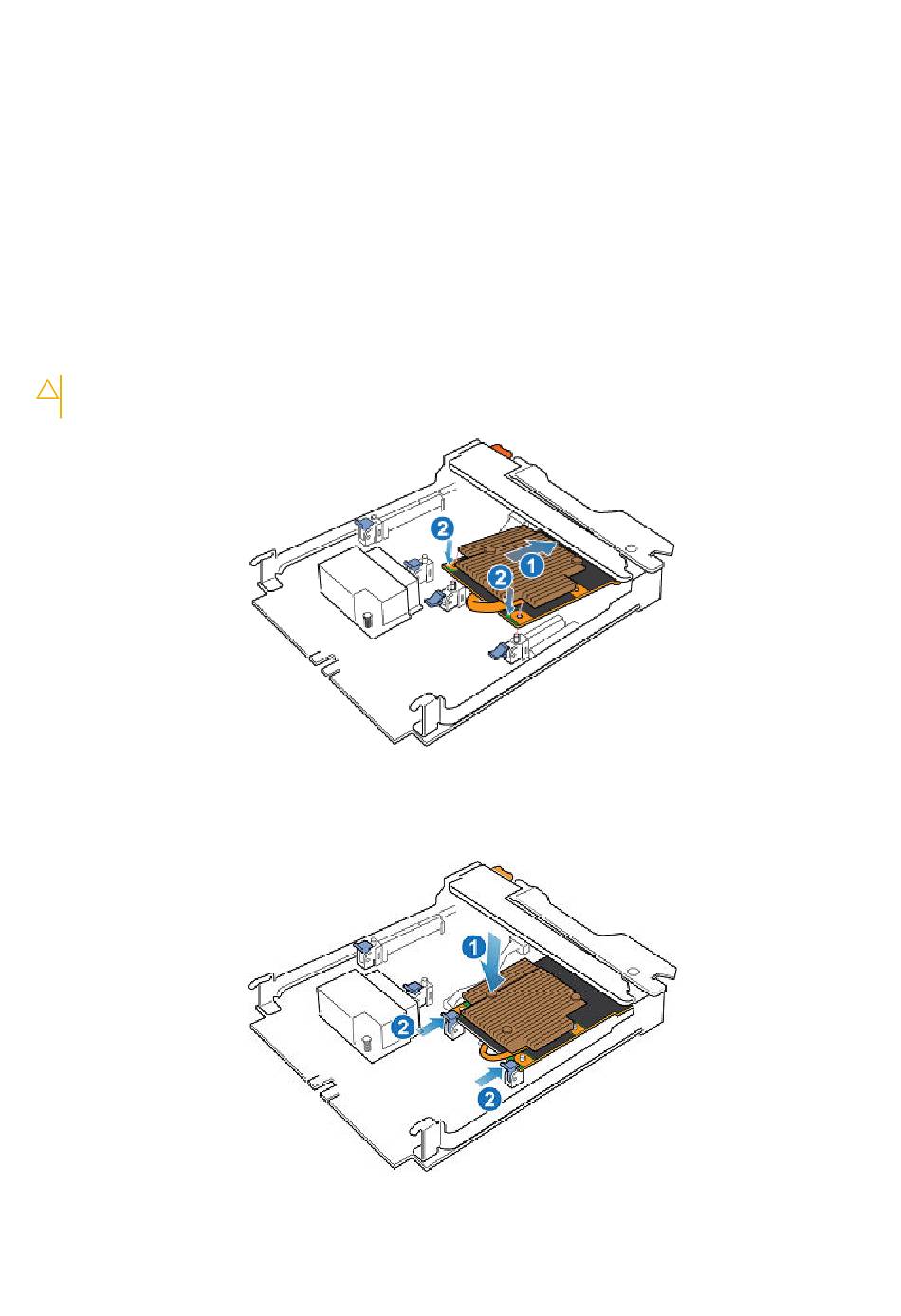

Figure 47. Seating the 4-port card
4. Gently push down on the upper-left circle on the 4-port card.
5. Push up on the blue tabs until they lock into place.
Figure 48. Locking the 4-port card into position
