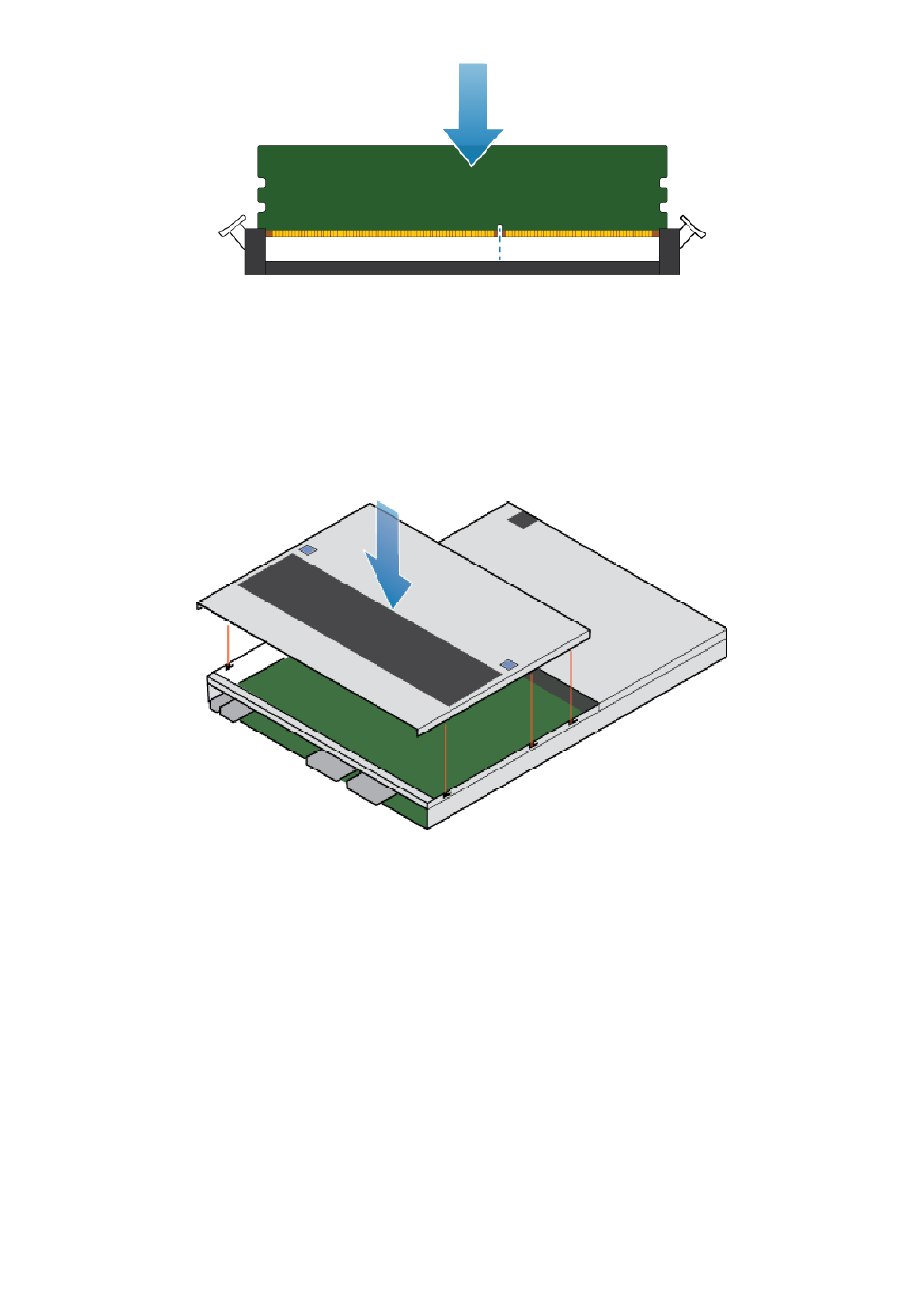

Figure 90. Installing the DIMM
3. Ensure that the tabs have locked into place and the DIMM is secure.
Install the top cover on the SP assembly
Steps
1. Position the top cover over the SP assembly and align it with the slots in the sides at the rear of the SP assembly.
Figure 91. Aligning the top cover
2. Pull the top cover forward to secure it in place.
