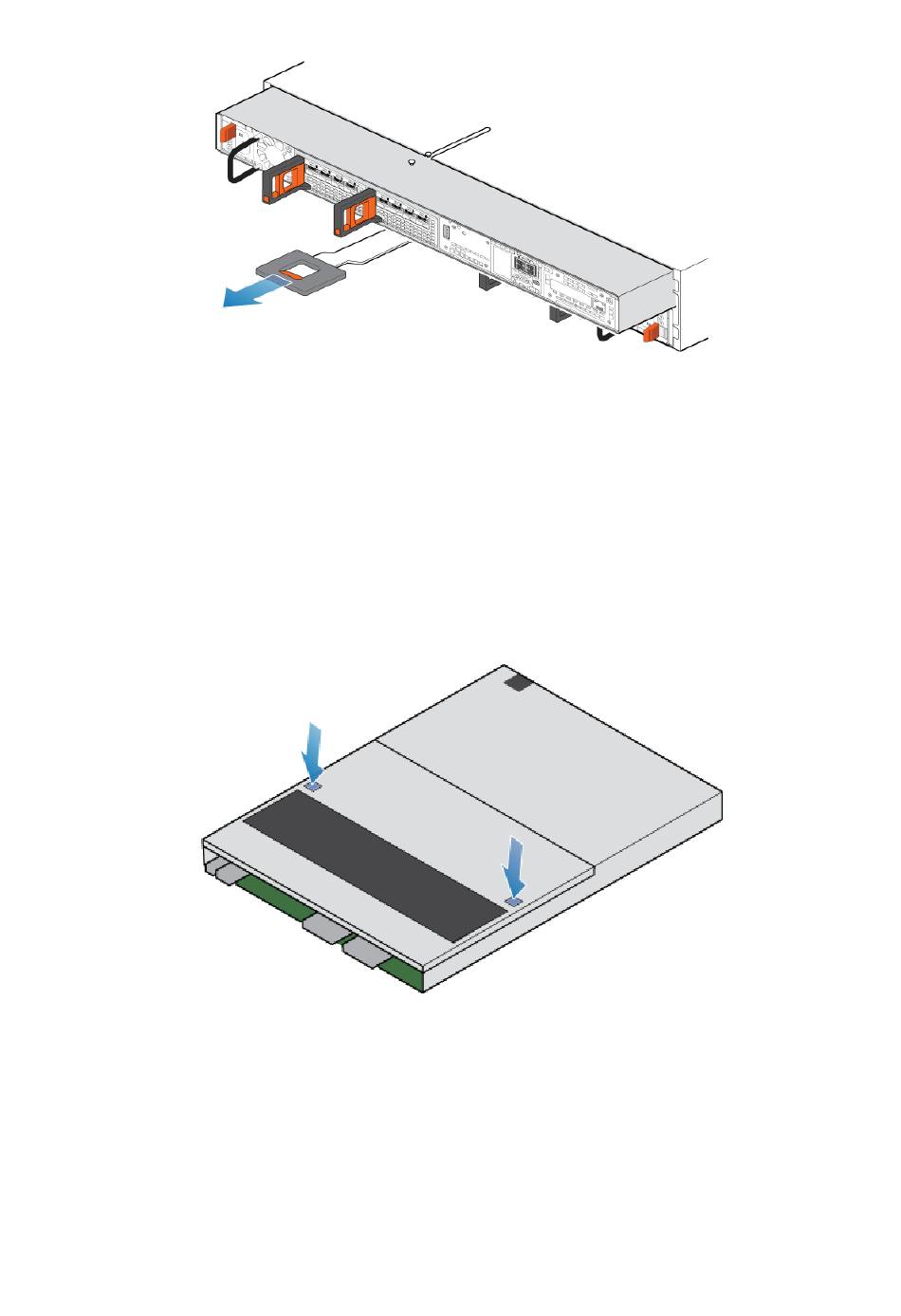

Figure 98. Removing the SP assembly
5. Place the SP assembly on a clean, flat, static-free work surface.
Remove the top cover from the SP assembly
Prerequisites
After removing the SP assembly from the rack, wait at least 30 seconds to ensure that the internal battery has had time to
power off.
Steps
1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
Figure 99. Releasing the top cover
2. Lift the top cover upward and remove it from the SP assembly.
86
Service Procedures
