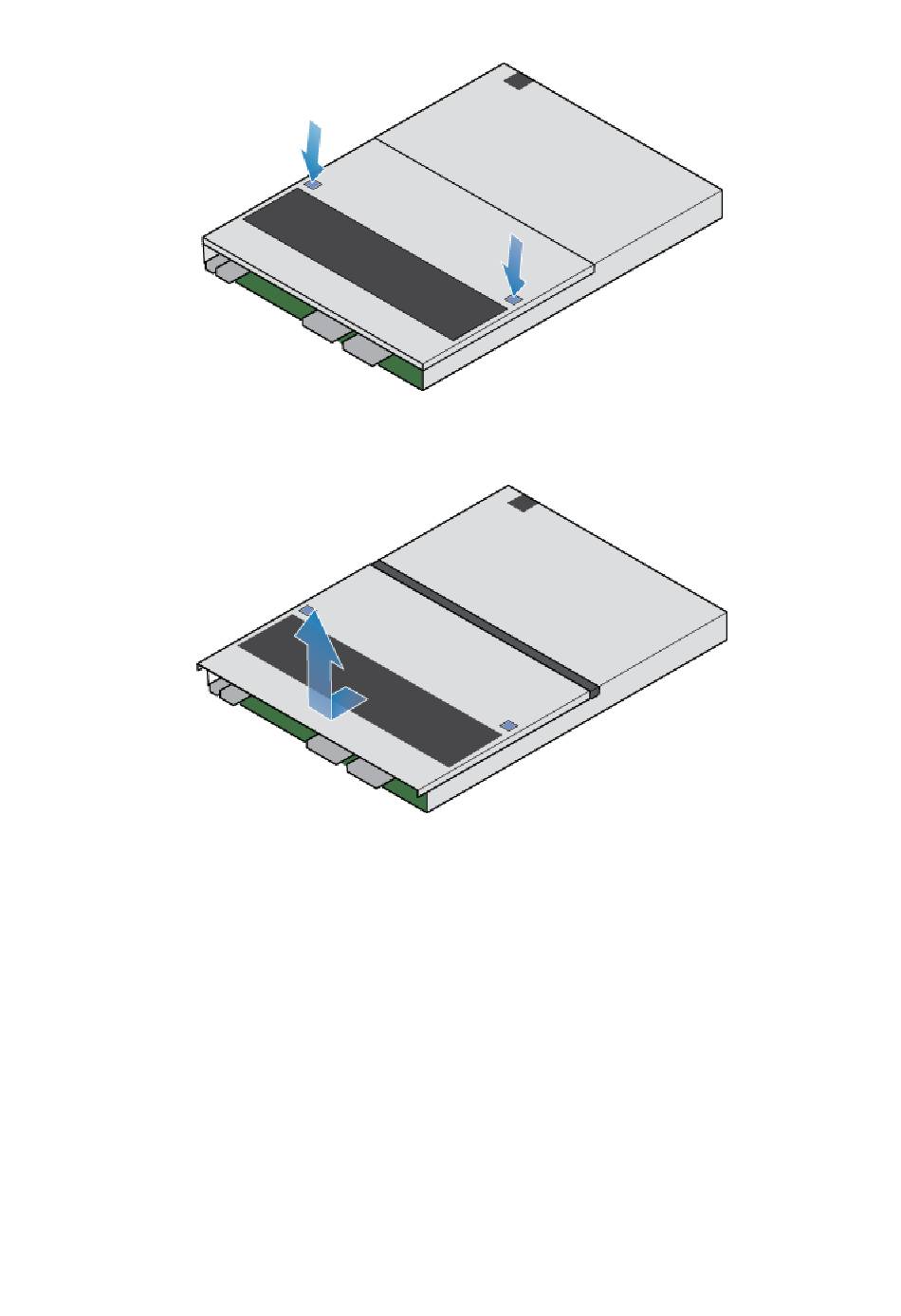

Figure 74. Releasing the top cover

2. Lift the top cover upward and remove it from the SP assembly.

Figure 75. Removing the top cover

Remove the faulted fan module

Steps

1. Disconnect the fan module power cable from the motherboard.

Service Procedures
