Remove The Top Cover From The Sp Assembly - Dell EMC Unity All Flash Installation And Service Manual

NOTE: Do not remove any cables from the other SP assembly.
3. Pull the orange release trigger while gently pushing in on the SP assembly.
The hook disengages from the locking mechanism, and the release tab slides out.
NOTE: The SP assembly comes completely out of the chassis. Be prepared to support the SP assembly to avoid
dropping it.

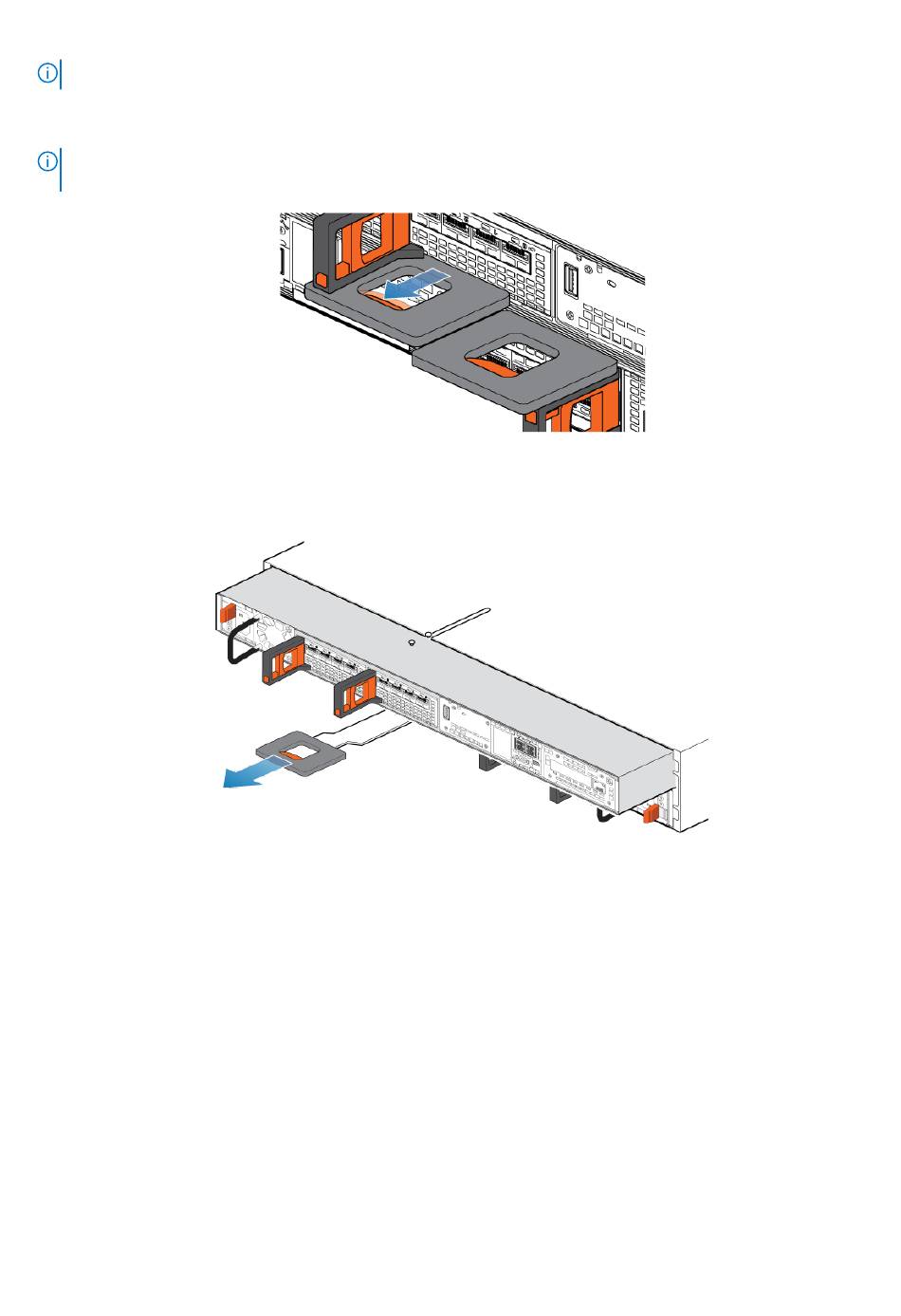

Figure 72. Disengaging the locking mechanism
4. Use the release handle to pull the SP assembly outward enough to grasp the sides with both hands. Then, with both hands
supporting the SP assembly, pull the SP assembly fully out of the enclosure.
Figure 73. Removing the SP assembly
5. Place the SP assembly on a clean, flat, static-free work surface.

Remove the top cover from the SP assembly

Prerequisites
After removing the SP assembly from the rack, wait at least 30 seconds to ensure that the internal battery has had time to
power off.
Steps
1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
Service Procedures 69
