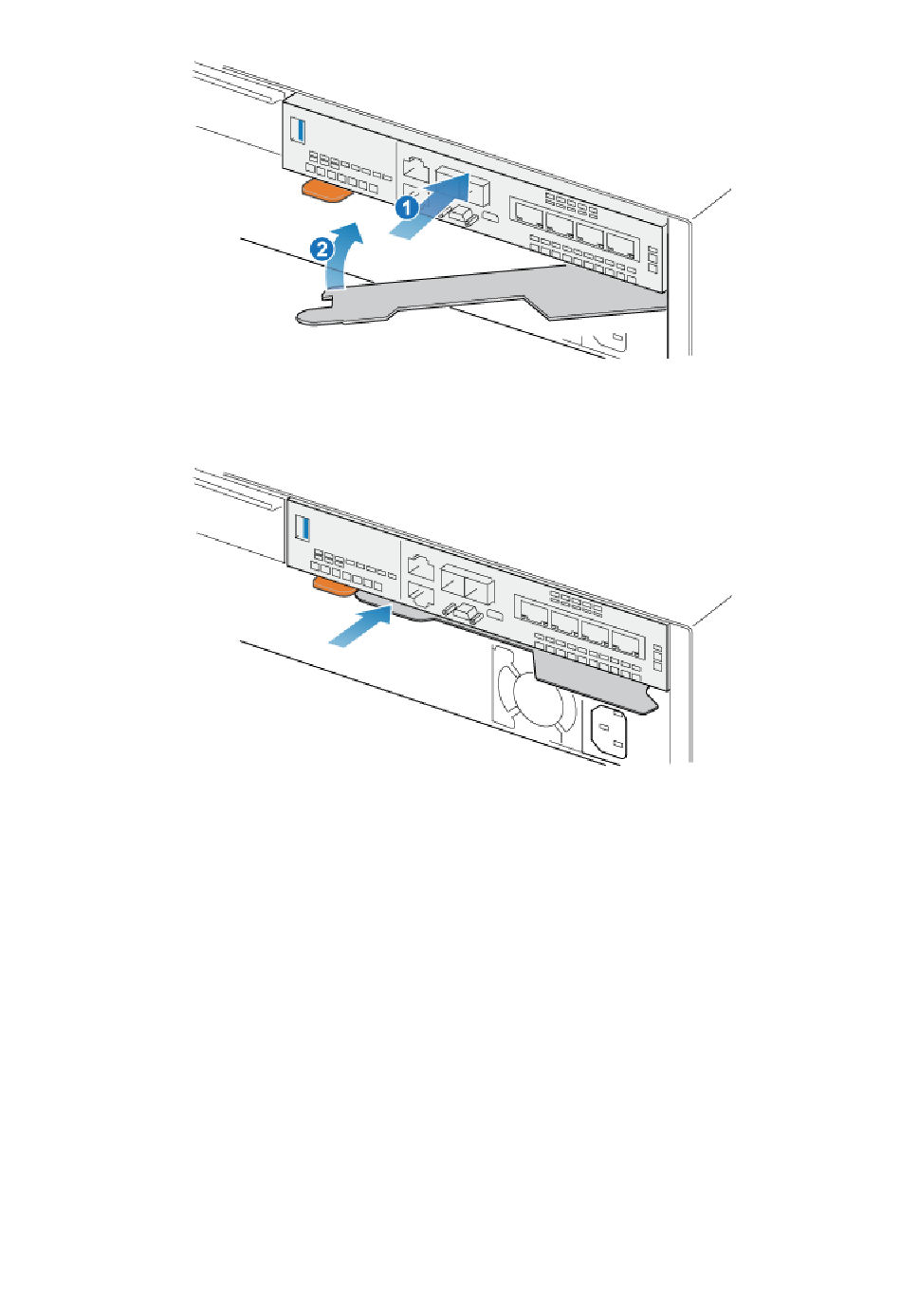

Figure 58. Installing the embedded module
2. When the embedded module is fully seated, push the release lever back into the system until the orange tab locks the lever
in place.
Figure 59. Locking the release lever
3. Connect each cable into the same port from which it was removed.

Rebooting a SP assembly into Normal Mode

Prerequisites
Ensure that the replacement I/O module, embedded module, or 4-port card has been correctly installed using Unisphere. The
replaced part's status indicates that the module is powered off and will power on during the next system reboot.
About this task
Reboot the recently serviced SP assembly into Normal Mode using the procedure that follows:
Steps
1. Open Unisphere and select Service, then Service Tasks.
2. Under the name of the storage processor where you installed the new I/O module, embedded module, or 4-port card, select
Reboot and click Execute.
3. When prompted, type the Service Password to put the SP assembly into Normal Mode.
It may take up to 15 minutes for the system to complete its reboot to return to normal mode.
