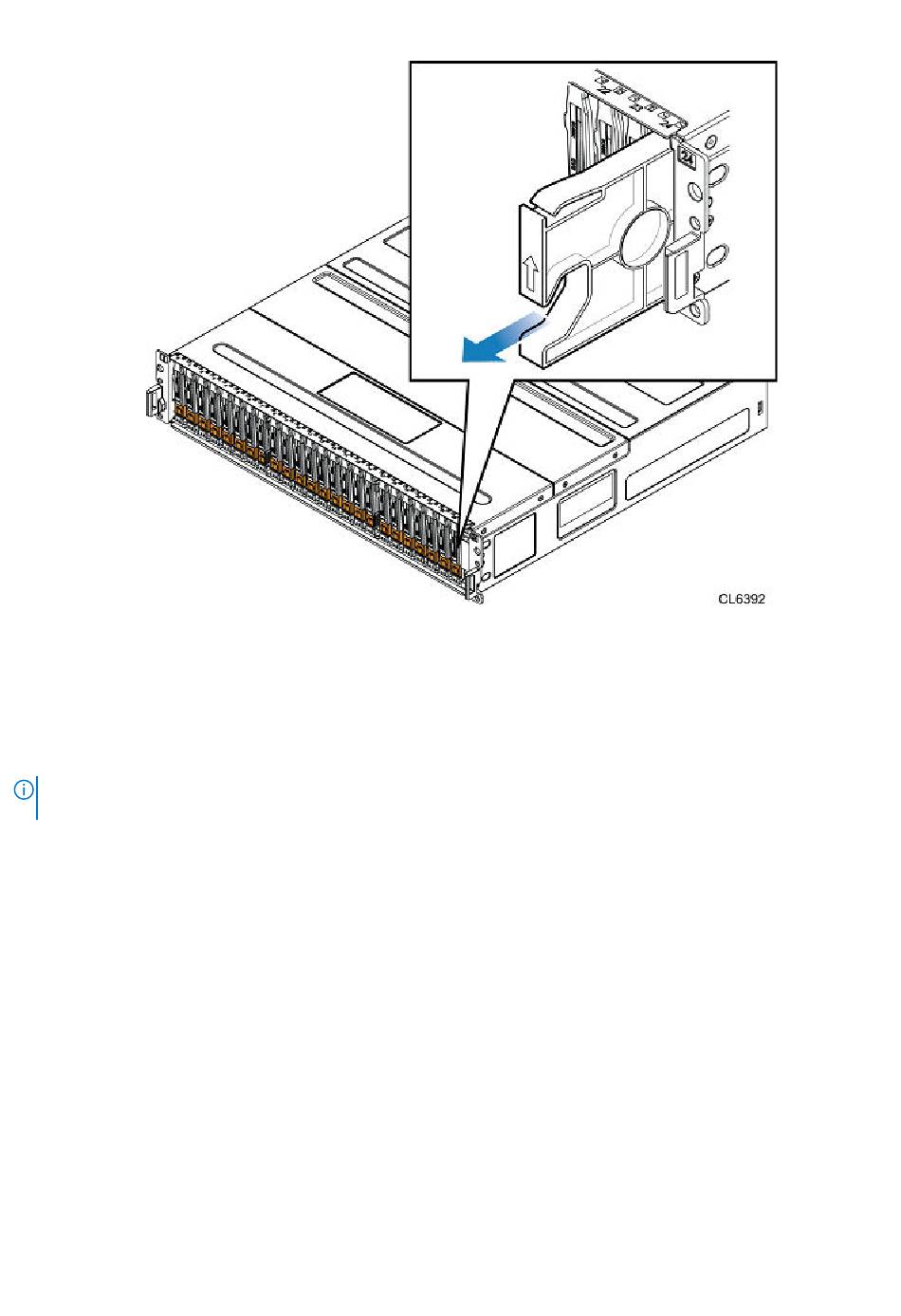

Figure 29. Removing a drive filler module
Install a 2.5" SAS or SAS Flash drive
About this task
NOTE:
If you are installing multiple drives in a system that is powered up, wait at least 10 seconds before sliding the next
drive into position.
Steps
1. Align the drive with the guides in the slot.
2. With the latch fully opened, gently push the drive into the slot.
The latch begins to rotate downward when it meets the enclosure.
3. Push the orange button until the drive is fully seated in the slot.
4. Push the latch down until it locks into place
The activity light flashes to indicate that the spin-up sequence has begun.
36
Service Procedures
