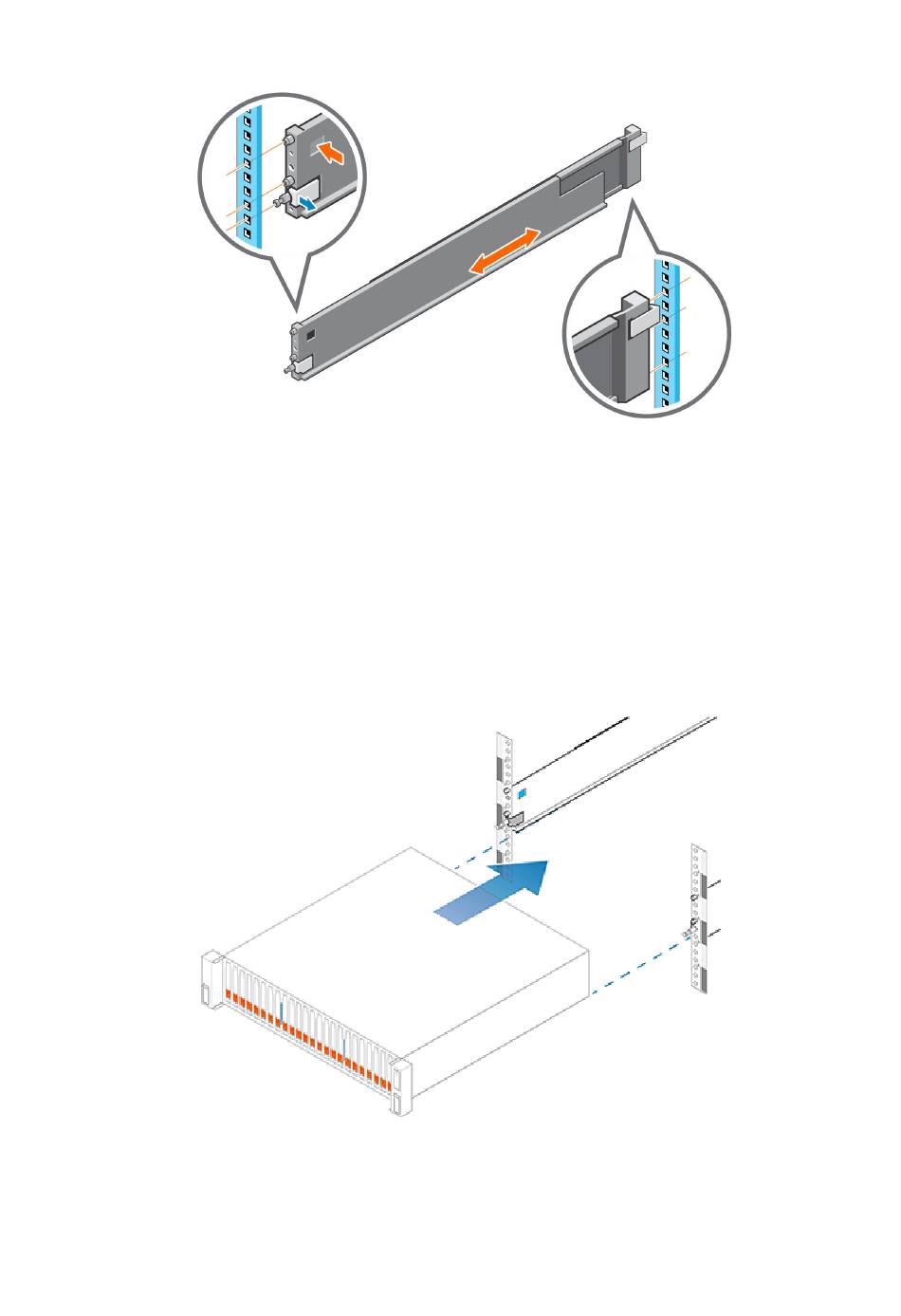

Figure 2. Installing the rails
5. Repeat for the other rail.
Install the DPE on the rails
Steps
1. Lift the enclosure and slide it onto the rails from the front of the cabinet.
2. Push the system into the rack until the slam latches engage and lock the system into the rack.
Ensure that the enclosure is flush with the front of the rack, fully seated in the cabinet, and does not slide out.
Figure 3. Installing the system in the enclosure
12
Installation Procedures
