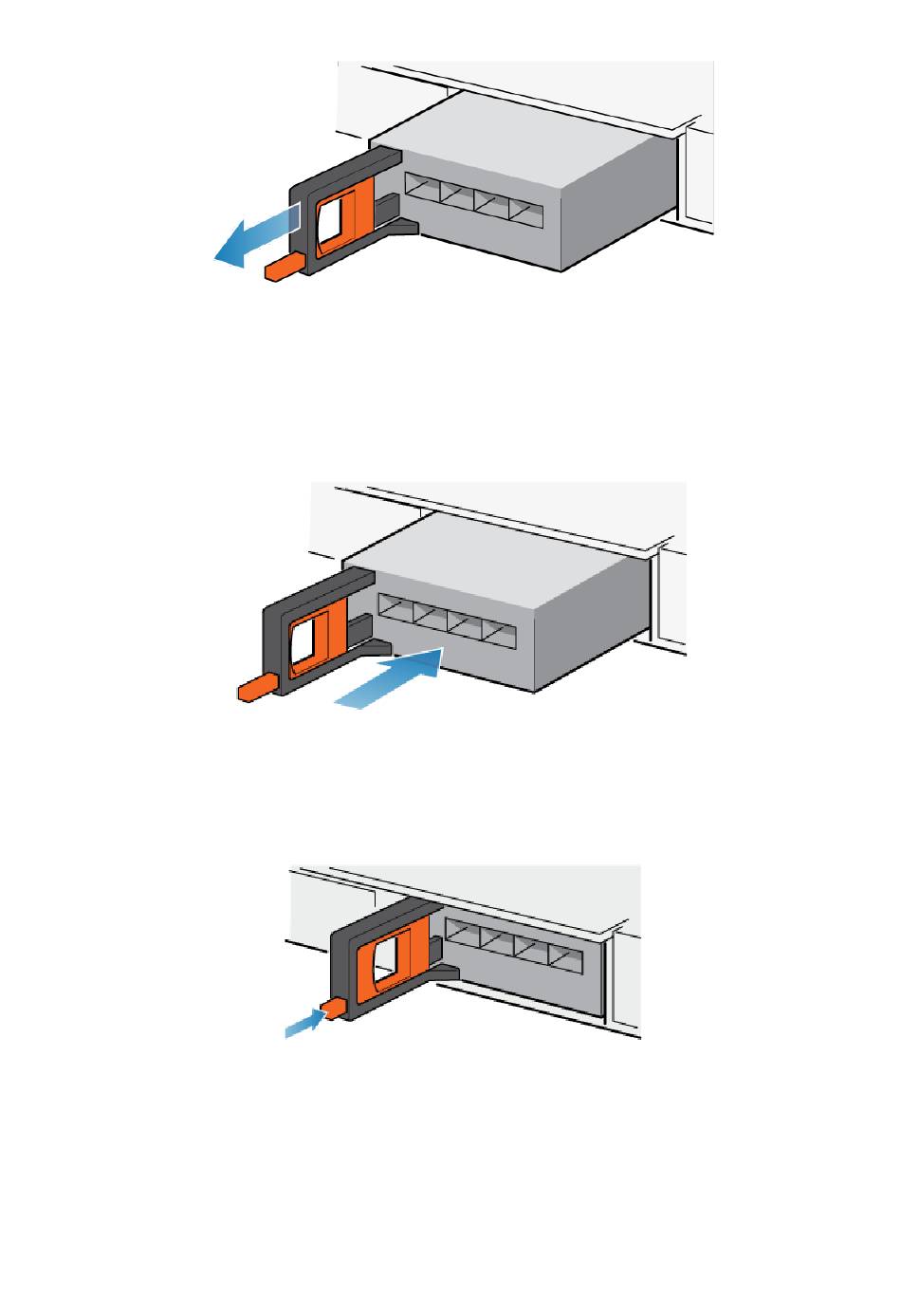

Figure 65. Removing the I/O module

Install a new I/O module

Steps
1. Align the module with the empty slot and carefully push the module into the slot.
Figure 66. Installing an I/O module
2. When the I/O module appears seated, push and release the small button on the handle.
● If the button remains in, the module is fully seated.
● If the button springs back, gently push the module further into the chassis, then push it again.
● If the button still does not rest flush with its handle, remove the module and repeat steps 1 and 2.
Figure 67. Locking in the I/O module
3. Connect the cables into the assigned I/O module ports.
Service Procedures 63
