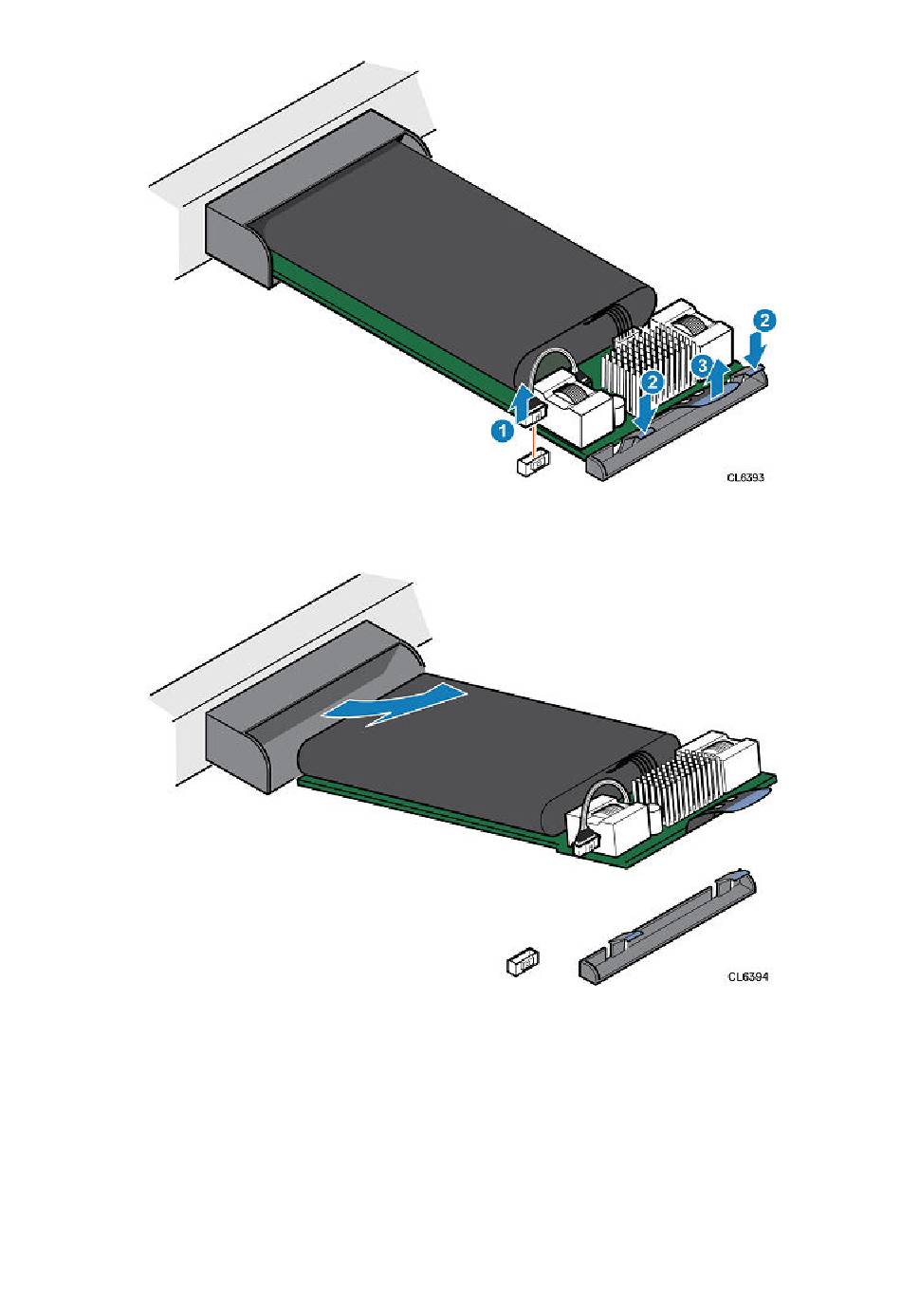

Figure 115. Releasing the internal battery backup module
4. Lift the internal battery backup module away from the motherboard.
Figure 116. Removing the internal battery backup module
5. Remove the cable from the internal battery backup module by squeezing the white tab and lifting upward.
Install the internal battery backup module
About this task
Service Procedures
97
