Install The M.2 Ssd - Dell EMC Unity All Flash Installation And Service Manual

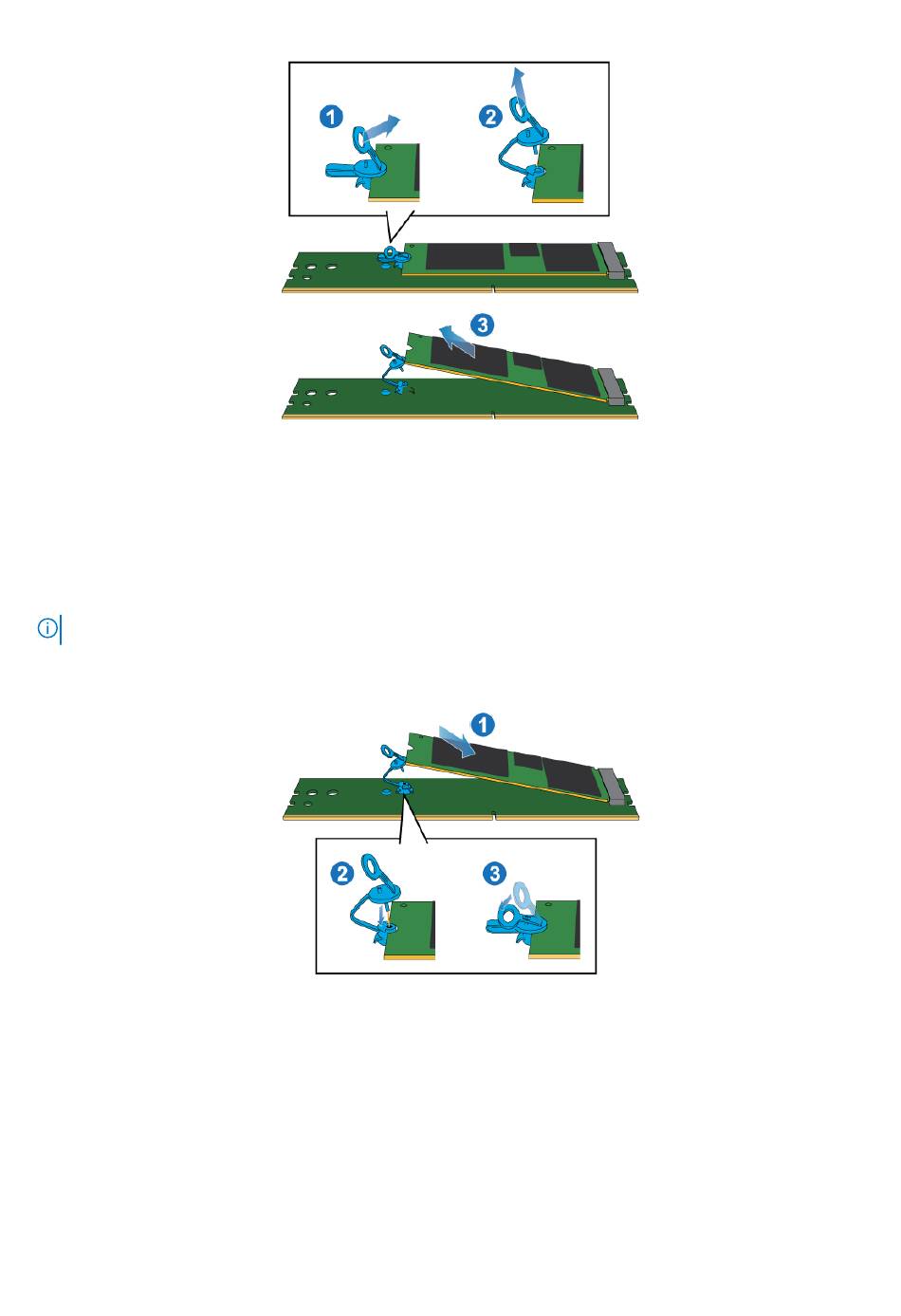

Figure 102. Removing the M.2 SSD from the M.2 SSD adaptor

Install the M.2 SSD

Steps
1. Place the M.2 SSD into the M.2 SSD adaptor.
NOTE: The side of the M.2 SSD with the barcodes should be facing up.
2. Align the blue tab on the replacement M.2 SSD with the slot on the M.2 SSD adaptor and gently push it into place.
3. Connect the pull tab to the blue adapter.
Figure 103. Installing the M.2 SSD into the M.2 SSD adaptor
4. Touching only the outside edges of the M.2 SSD adaptor, align the M.2 SSD adaptor with the connector.
5. Firmly push the M.2 SSD adaptor straight down into the connector.
When the M.2 SSD adaptor is fully seated, you will hear a snap, and feel the connector latches click into place.
88 Service Procedures
