7 Reference

7.1 Overview

This chapter is a reference for VisualDSP++. Because the debugger is dynamic, menu selections,
commands, and dialogs change depending on the target being used. This chapter provides
information on all of the menu selections, commands, and dialogs when the target is the ADSP-
21065L evaluation board. For all other debugger commands, see the VisualDSP++ Guide &
Reference. Note that grayed out commands are unavailable with this target.

7.2 Settings Menu Commands

All of the commands that pertain to the EZ-KIT Lite board are contained in the Settings and
Demo menus. The Settings menu provides access to the following commands:

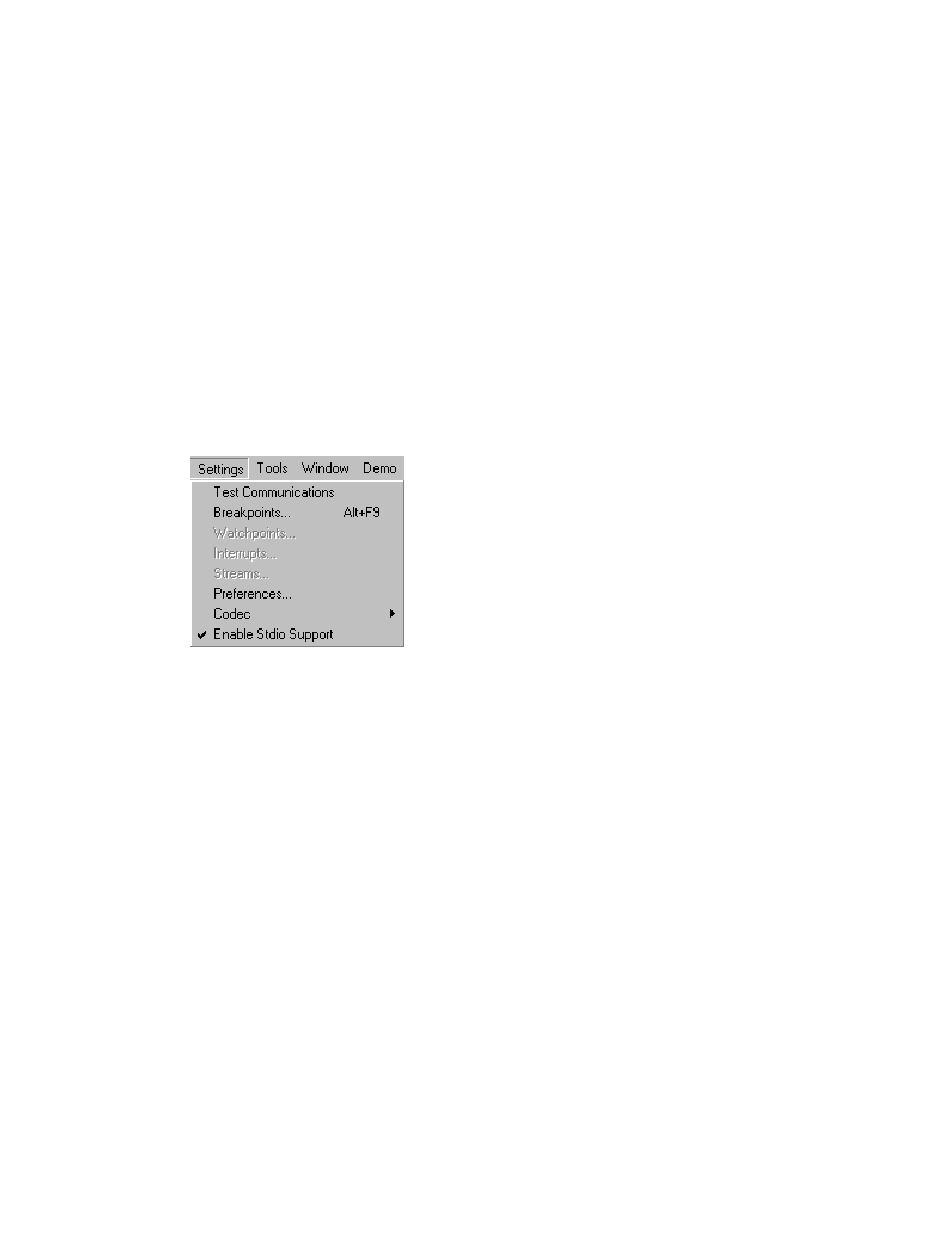

Figure 7-1 Settings Menu Commands

7.2.1 Test Communications

Tests the PC, EZ-KIT Lite communications. Responses are Communications Success or
various error messages sent to the Output window. In most cases resetting the EZ-KIT
Lite reestablishes communication.

7.3 Baud Rate and COM Port

Sets up the baud rate of the current COM port and UART. Choices
are 9600, 19200, 38400, 57600, and 115200. The default rate is
115200. (NOTE:
operate very slowly and can also cause it to hang.)
Selects a PC communications port for the ADSP-21065L EZ-KIT Lite
board. Choices are COM (1-4). The default setting is COM 1.
