Appendix | sensorTOOL Software
The analog input of the ODC 1200 can be used on both input channels Ch.1 and Ch.2 simultaneously and
thus voltage and micrometer value can be output at the same time.
At 100 % shading, you can read the offset under Measurement and enter it under Settings.
A 3.2

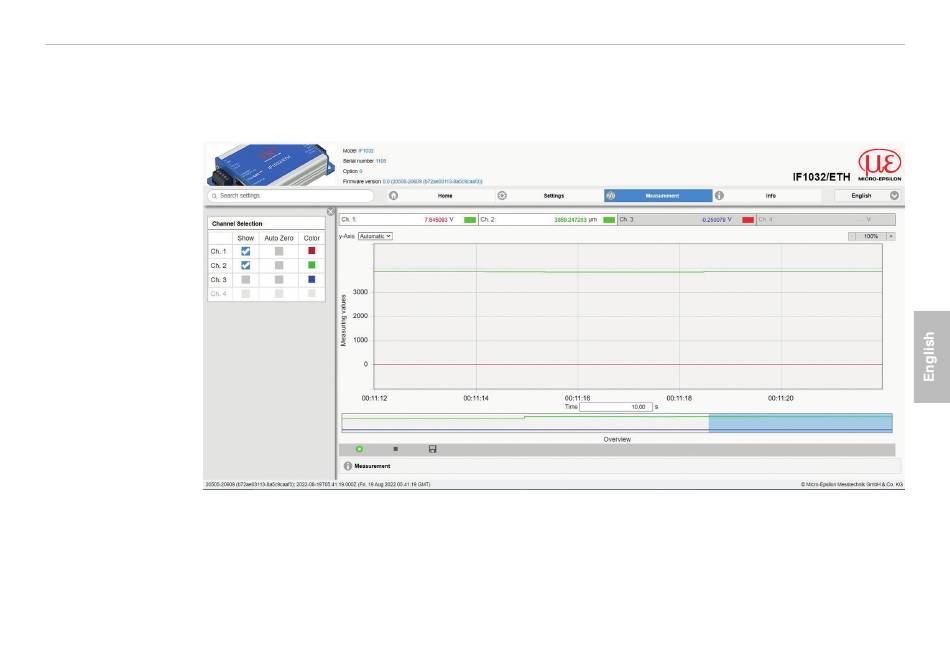

Fig. 19 Measurement display view of the IF1032/ETH web interface
i
optoCONTROL 1200/1201
Measurement Menu
Ch.1 shows the voltage value.
Ch.2 shows the micrometer value.
Ch.3 shows the current input and cannot be assigned by default with the ODC120x.
