Operation
6.5
Light source
LED
Limit state
Adjustment

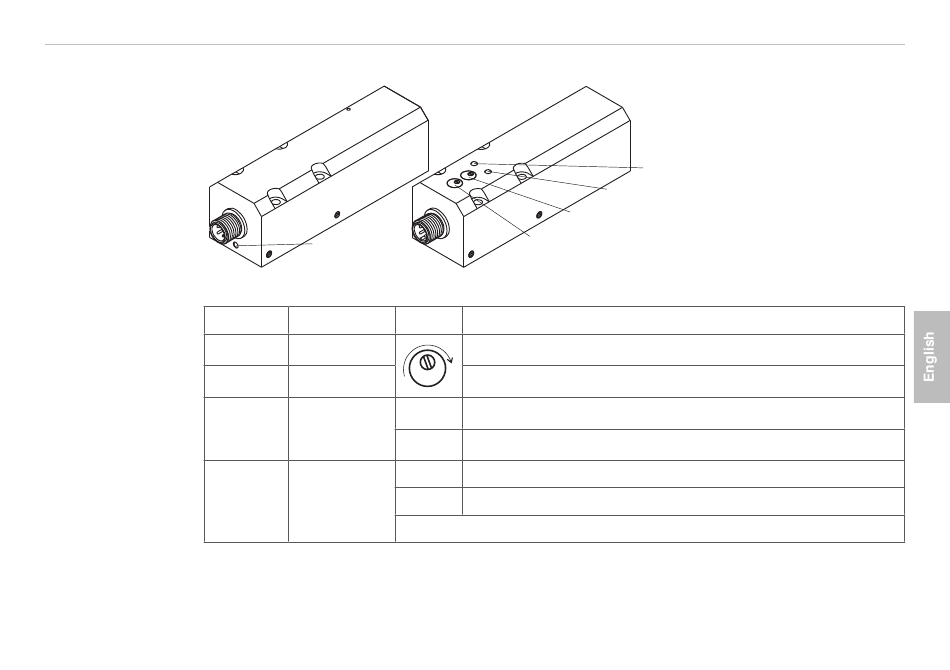

optoCONTROL 1200/1201
LED Functions, Potentiometer optoCONTROL 1201
Power
Receiver
Potentiometer State
Threshold
Gain
Yellow
Green
Red
Green
Use the gain pot to adjust the analog output up to 10 V.
Limit state
Gain
Threshold
Description
Turn clockwise to increase threshold value, range 0 ... 10
Turn clockwise to increase gain value, range 0 ... 10 V
Analog voltage < threshold value
Analog voltage > threshold value
Output < 9.5 V
Output > 9.5 V
Adjustment
