Operation
6.4
Light source
LED
Adjustment
Limit state
optoCONTROL 1200/1201

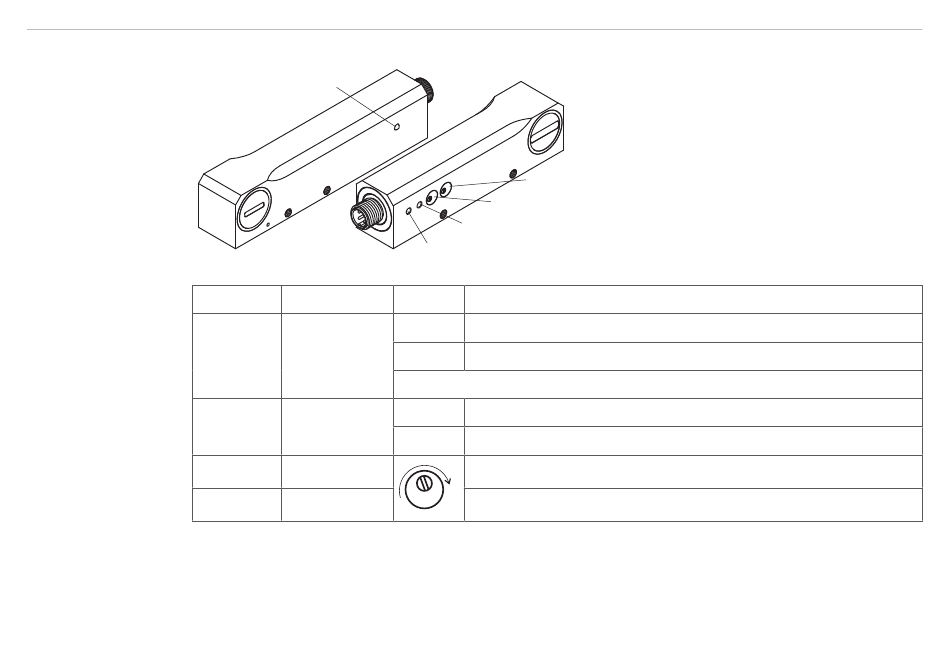

LED Functions, Potentiometer optoCONTROL 1200/90
Power
Adjustment
Receiver
Potentiometer State
Red
Green
Use the gain pot to adjust the analog output up to 10 V.
Yellow
Green
Threshold
Gain
Gain
Threshold
Limit state
Description
Output < 9.5 V
Output > 9.5 V
Analog voltage < threshold value
Analog voltage > threshold value
Turn clockwise to increase threshold value, range 0 ... 10 V
Turn clockwise to increase gain value, range 0 ... 10 V
