optoCONTROL 1200/1201

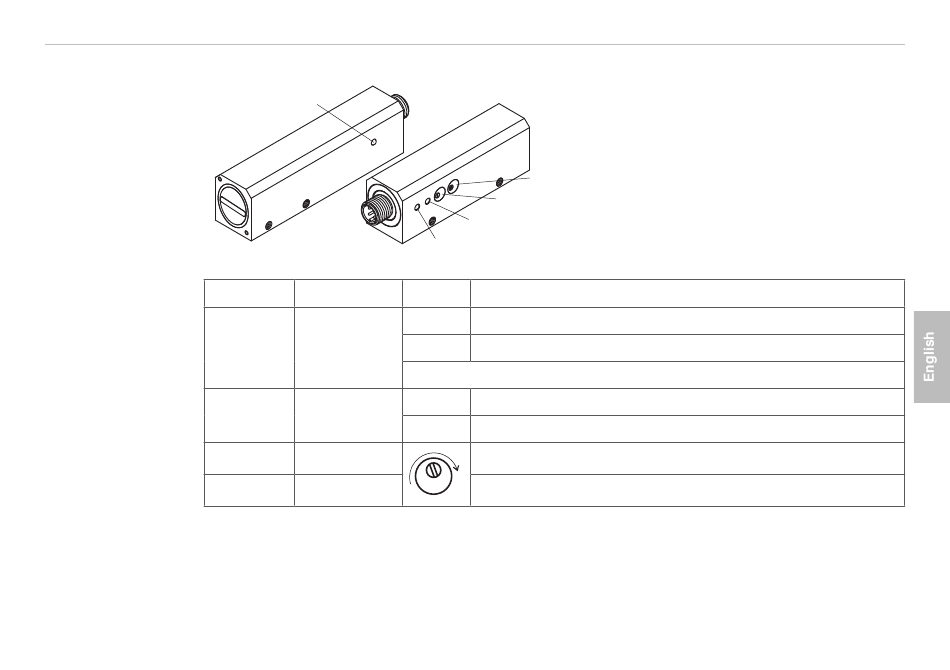

LED Functions, Potentiometer optoCONTROL 1200
Power
Adjustment
Receiver
Potentiometer State
Red
Green
Use the gain pot to adjust the analog output up to 10 V.
Yellow
Green
Threshold
Gain
Gain
Threshold
Limit state
Description
Output < 9.5 V
Output > 9.5 V
Analog voltage < threshold value
Analog voltage > threshold value
Turn clockwise to increase threshold value, range 0 ... 10 V
Turn clockwise to increase gain value, range 0 ... 10 V
