Operation
Receiver
Pin
1
2
3
4
Screen Housing
1) High side/low side switch. The load can be connected to +24 VDC or to GND.
optoCONTROL 1200/1201
Signal
Color
PC120x
+12 ... +32 VDC
Brown
Analog out
White
(0 ... 10 VDC)
GND (0 V)
Blue
Digital out
Black
---
Power +24 VDC
1
Analog output 0 ... 10 VDC
2
I
< 100 mA
4
1
Load
GND
3

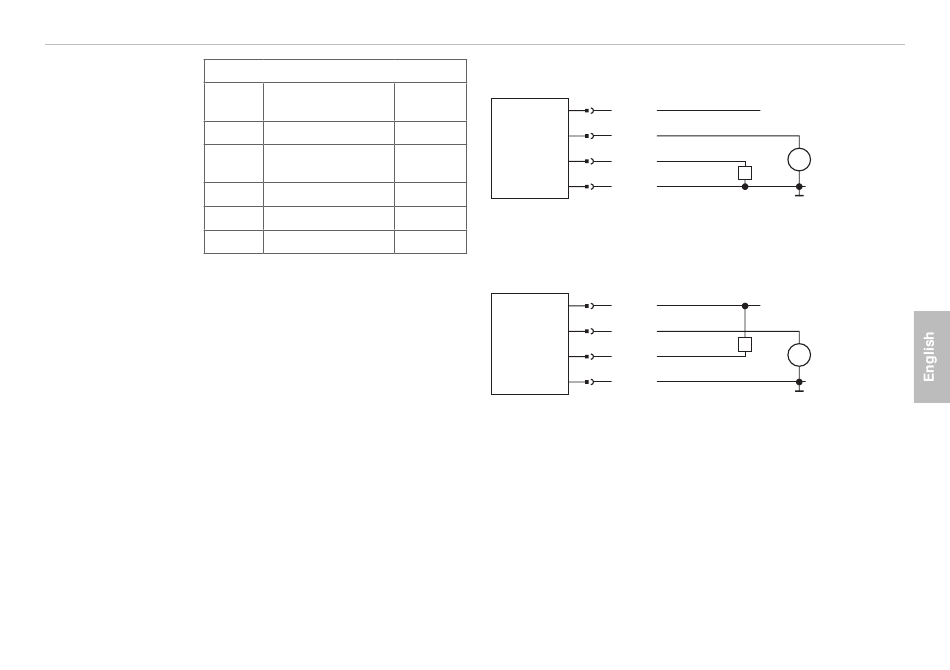

Fig. 11 Receiver wiring, load connected to GND,
(PNP acive light quantity < threshold)
Power +24 VDC
1
Analog output
2
I
< 100 mA
1
4
Load
3
GND
Fig. 12 Receiver wiring, load connected with +24 VDC,
(NPN active light quantity > threshold)
V
0 ... 10 VDC
V
V
Page 65
