Wibeee Max
3.4.- DEVICE TERMINALS
1: Current measurement: Black: L1 , Red: L2, Yellow: L3
2: Voltage measurement and power supply: Black: L1 , Red: L2, Yellow: L3, Blue: Neutral
3.5.- CONNECTION DIAGRAMS
L1
L2
L3
N
Instruction Manual
Table 9:List of terminals of the Wibeee Max�
Terminals of the Wibeee Max device
Green and Brown: Power supply.
1

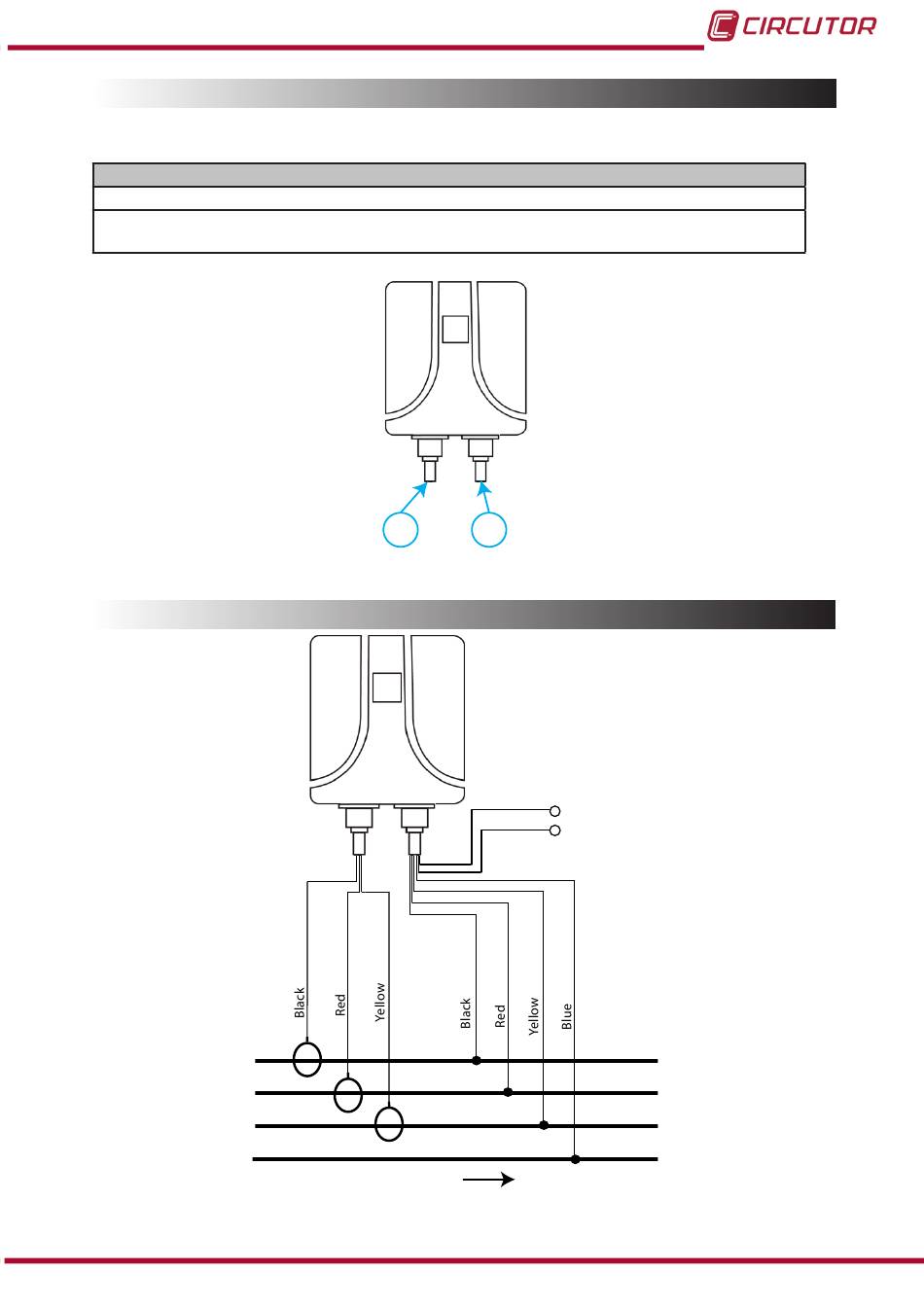

Figure 3: Wibeee Max terminals�
LOAD
Figure 4: Wibeee Max connection diagram�
2
Brown
Power
Green
Supply
13
