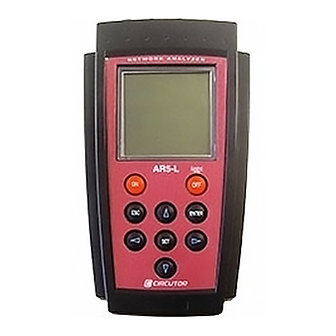

Circutor AR5-L Instruction Manual

Supply network analyzer
Hide thumbs Also See for AR5-L:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

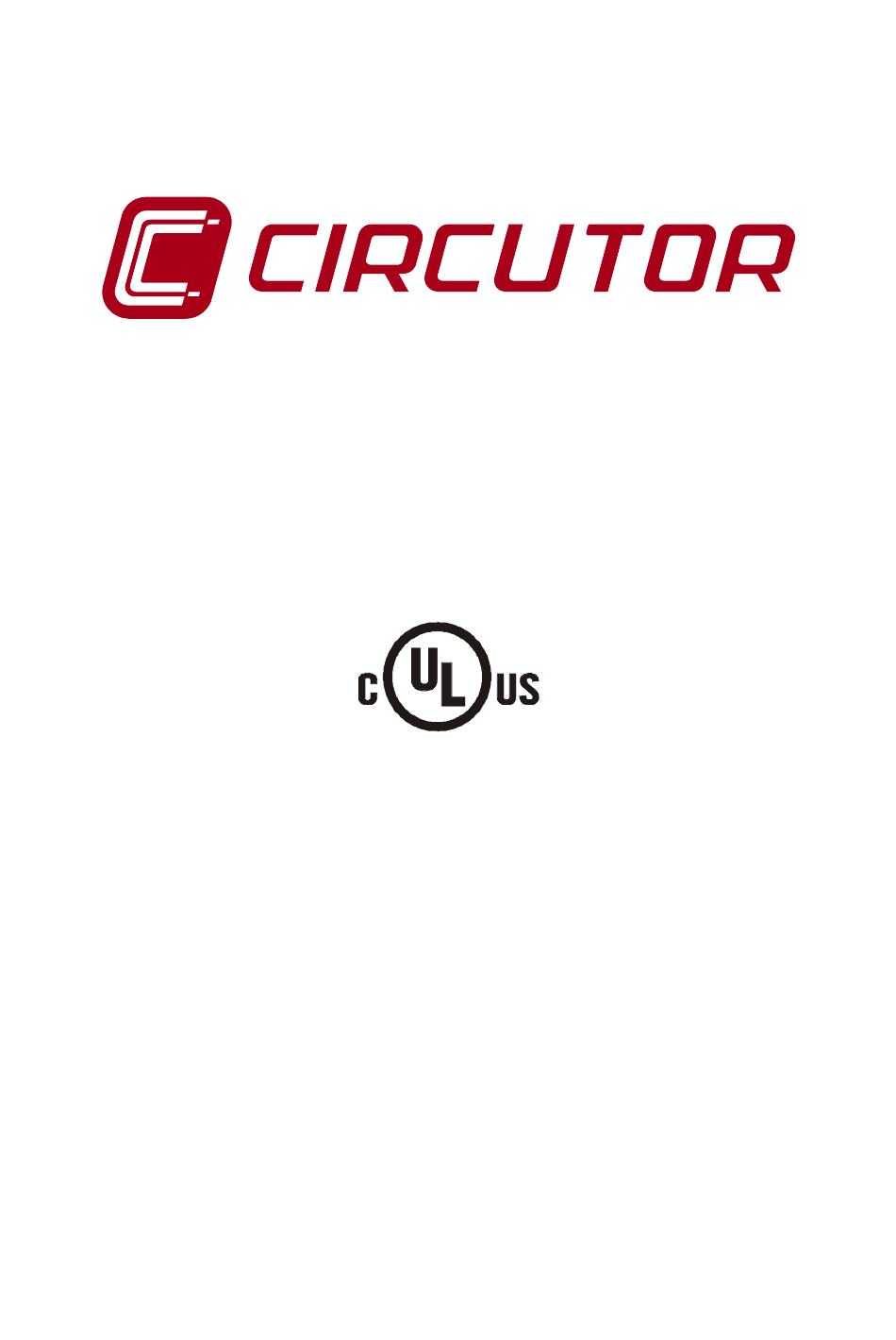

SUPPLY NETWORK ANALYZER
AR5 & AR5-L
Power line quality program
(Disturbances version)
( Code M80224 )
INSTRUCTION MANUAL
( M98151201-20-05A )
CIRCUTOR S.A.
(c)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR5-L and is the answer not in the manual?

Questions and answers

Related Manuals for Circutor AR5-L

Summary of Contents for Circutor AR5-L

  • Page 1 SUPPLY NETWORK ANALYZER AR5 & AR5-L Power line quality program (Disturbances version) ( Code M80224 ) INSTRUCTION MANUAL ( M98151201-20-05A ) CIRCUTOR S.A.

  • Page 2: Table Of Contents

    CONTENTS page DESCRIPTION ......................3 1.1.- Technical description ....................3 1.2.- Operation mode ......................4 Checking the contents of your package ............... 6 ANALYZER STARTUP....................7 3.1.- Loading a new program ....................7 3.2.- Choice of the operation mode program ..............8 3.3.- Turn the analyzer off ....................

  • Page 3: Description

    1.- DESCRIPTION This manual is aimed to familiarize de user with the operation of the portable analyzer models AR5 / AR5-L when working with the “Disturbances version” of the power line quality program. To get all necessary information about operation instructions and safety warnings of the portable analyzer consult its instruction manual (code M98151101).

  • Page 4: Operation Mode

    1.2.- Operation mode The analyzer takes 40 samples per cycle between the L1 and Neutral voltage inputs when working in single-phase mode. The analyzer takes 40 samples per phase and cycle when working in three-phase mode (40x3=120 samples per cycle). The difference between each sample and the previous one is calculated by the analyzer, so that this difference is then compared with the maximum slope calculated.
  • Page 5 Values to be user-programmed: - Rated Voltage : Vn = 10 to 500 V - Voltage limits : From 100% to 50% of peak voltage - Trigger Level TL = de 1.2 a 5 - Rated Frequency: Fn = 45 to 65 Hz Calculated parameters : - Scale : Auto-scaling according to the rated voltage.

  • Page 6: Checking The Contents Of Your Package

    Figure 2 Previous figures (Figure 1 & 2) show disturbances detected due to the maximum slope permissible value (according to user-define magnitudes) has been exceeded between two successive samples. Figure 3 Figure 3 shows another type of disturbance (voltage sag) where no value exceed for a cycle the 75% of the pre-defined peak voltage (Vpeak = Vn ·...

  • Page 7: Analyzer Startup

    3.- ANALYZER STARTUP 3.1.- Loading a new program The device has an internal memory to save diverse operation mode programs to be used by the user. Before starting this action, check that analyzer is supplied through the power supplier set. To load any program, follow these instructions precisely: •...

  • Page 8: Choice Of The Operation Mode Program

    3.2.- Choice of the operation mode program The analyzer can hold in memory different operation mode programs. The choice of the program to be used is done when starting the meter up. • Turn the device on. • A list of available programs will be shown on display. •...

  • Page 9: Data Visualization On Display

    4.- DATA VISUALIZATION ON DISPLAY 4.1.- Base screen The disturbance analyzer has an only visualization screen. Main measurement or set-up parameters can be read at this screen. DISTURB DISTURB 220V 220V 219V 220V 50.0 50.0 Dist. Dist. 04/06/04 16:06:35 04/06/04 16:06:35 File:STD-PROG.A5D File:STD-PROG.A5D...

  • Page 10: Programming The Analyzer

    5.- PROGRAMMING THE ANALYZER To access analyzer setup options press the key [SET]. The analyzer will then inquiry for a password that consists of a key sequence to be pressed (the user has 15 seconds to press this sequence). ). If the default password has not been modified, then the following key sequence must be followed: PASSWORD [3] [SET] [5] [SET]...

  • Page 11: Setup Menu

    5.1.- SETUP menu The analyzer can be user-configured to different performances involving its data analysis and recording modes, as it is followed shown: SETUP SETUP menu. CIRCUIT RECORD COMM CLOCK PASSWORD Single-phase / Three-phase CIRCUIT RECORD TRIGGER Level, rated voltage, rated frequency, % limit V NAME File name ( 8 characters) COMM...

  • Page 12: Record Menu

    5.1.2.- RECORD menu. The recording conditions are here user-programmed: RECORD TRIGGER Level, Rated Voltage, Rated Frequency & % limit V NAME File name ( 8 digits ) 5.1.2.1.- TRIGGER: Trigger conditions. TRIGGER LEVEL VNOM HZNOM V.LOW You can program here certain conditions (Trigger) so that disturbance wave forms are recorded in memory only when these conditions are met.

  • Page 13: 2.- Name: Recording File Name

    5.1.2.2.- NAME: recording file name Type here the file name (8 characters, no extension). NAME STD-PROG NOTE! Extension for disturbance files is always A5D. Whether the name of the working file is change, previous file will not be deleted, since several files can be at the same time saved in the device internal memory provided these are differently named.

  • Page 14: Password: Safety Setting

    5.1.5.- PASSWORD: Safety setting. Set here the analyzer password configuration. This password will be required to access the Setup menu. Thus, the manipulation of the analyzer by not-authorized people can be avoided. The password can be also required for turning the analyzer off. The default password is: PASSWORD [3] [SET] [5] [SET]...

  • Page 15: Contrast: Screen Contrast

    FILES MENU DELETE FORMAT 5.4.1.- DIR: Directory This option shows on display a directory of all files saved in memory. AR5-L - DIR STD-PROG. STD xxxxx bytes File name / File size dd / mm / yy hh : mm : ss Day / Time TEST1.

  • Page 16: Delete: Deleting A File

    5.4.2.- DELETE: Deleting a file You can here delete any file from the internal memory. AR5-L – DELETE STD-PROG. A5M xxxxx bytes File name / File size TEST1. A5D xxxxx bytes STD-PROG. A5I xxxxx bytes ....With keys [6] & [5] select the file to be deleted.

  • Page 17: Menu Language

    5.6.- Menu LANGUAGE It allows to select the language in which the menus will be presented. Language English With keys [6] & [5] select the language. [ENTER] to confirm selected language Press key [ESC] to exit with no modification. NOTE: This configuration is commune for all the programs. Page nº...

  • Page 18: Technical Specifications

    ATS-5 shunt (5 A / 2 V a.c.) + current transformers (../5 A) ..CODE M 89925 − Carrying case - Carrying case for AR5-L/AR5 current clamps......CODE M 89921 - Carrying case for AR5-L/AR5 ..........CODE M 89901 - 1000 case (with protection rubber CPR-1000) ....CODE M 89923 - 2000 case (with protection rubber CPR-2000) ....

  • Page 19: Safety Warnings

    8.- TECHNICAL SERVICE For any inquiry about the instrument operation mode or in case of malfunction, you can contact CIRCUTOR S.A.’s technical service. CIRCUTOR S.A. - Aftersales Service Vial Sant Jordi, s/n 08232 - Viladecavalls (SPAIN)

  • Page 20: A.- Quick Guide - Disturbances

    A.- QUICK GUIDE – DISTURBANCES Menu Description Options Standard Set-up Circuit Choice type of measuring circuit. Single-phase Three-phase Three-phase Record Trigger Level Sensitivity level setting VNOM Rated voltage of monitored power line 230 V HZNOM Rated frequency of monitored power line 50 Hz V.LOW % of voltage limit.
