2
PANEL DESCRIPTION

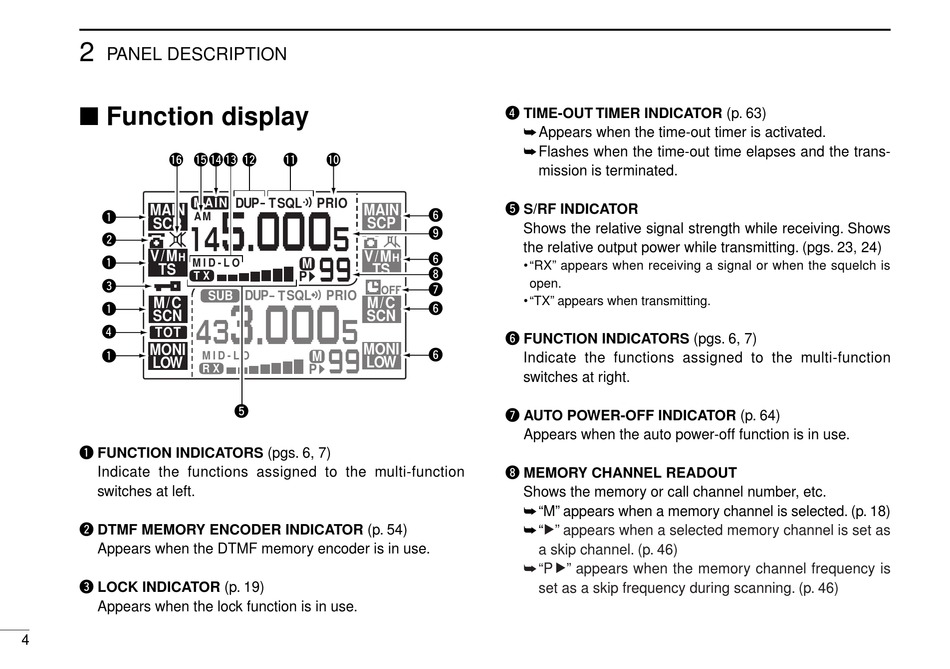

Function display

!6 !5
MAIN
MAIN
q
AM
SCP
14
w
V/M
H
q
M I D - L O
TS
T X
e
M/C
q
SCN
43
r
TOT
MONI
q
LOW
q FUNCTION INDICATORS (pgs. 6, 7)
Indicate the functions assigned to the multi-function
switches at left.
w DTMF MEMORY ENCODER INDICATOR (p. 54)
Appears when the DTMF memory encoder is in use.
e LOCK INDICATOR (p. 19)
Appears when the lock function is in use.
4
!4 !3 !2 !1 !0
DUP SQL PRIO
T
MAIN
5.000
SCP
5
V/M
99
M
TS
P
OFF
SUB DUP T SQL PRIO
M/C
3.000
SCN
5
MONI
99
M I D - L O M
LOW
P
R X
t
r TIME-OUT TIMER INDICATOR (p. 63)
Appears when the time-out timer is activated.
Flashes when the time-out time elapses and the trans-
mission is terminated.
t S/RF INDICATOR
y
Shows the relative signal strength while receiving. Shows
o
the relative output power while transmitting. (pgs. 23, 24)
y
H
• "RX" appears when receiving a signal or when the squelch is
i
open.
u
• "TX" appears when transmitting.
y
y FUNCTION INDICATORS (pgs. 6, 7)
y
Indicate the functions assigned to the multi-function
switches at right.
u AUTO POWER-OFF INDICATOR (p. 64)
Appears when the auto power-off function is in use.
i MEMORY CHANNEL READOUT
Shows the memory or call channel number, etc.
"M" appears when a memory channel is selected. (p. 18)
"≈" appears when a selected memory channel is set as
a skip channel. (p. 46)
"P ≈" appears when the memory channel frequency is
set as a skip frequency during scanning. (p. 46)
