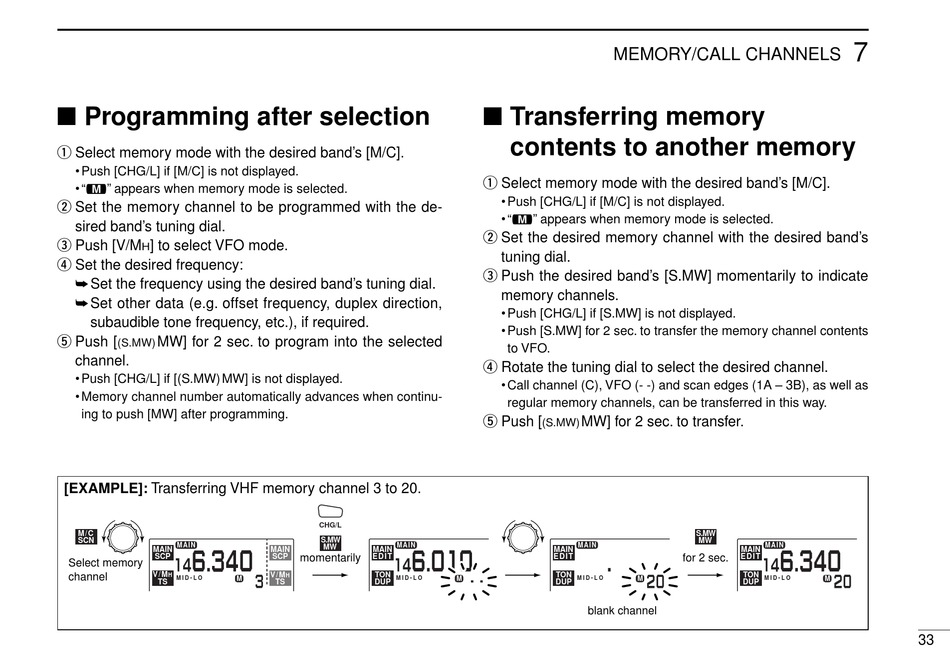

Programming After Selection; Transferring Memory Contents To Another Memory - Icom IC-2800H Instruction Manual

Programming after selection

q Select memory mode with the desired band's [M/C].
• Push [CHG/L] if [M/C] is not displayed.
• "!" appears when memory mode is selected.
w Set the memory channel to be programmed with the de-
sired band's tuning dial.
e Push [V/M
] to select VFO mode.
H
r Set the desired frequency:
Set the frequency using the desired band's tuning dial.
Set other data (e.g. offset frequency, duplex direction,
subaudible tone frequency, etc.), if required.
t Push [
MW] for 2 sec. to program into the selected
(S.MW)
channel.
• Push [CHG/L] if [(S.MW) MW] is not displayed.
• Memory channel number automatically advances when continu-
ing to push [MW] after programming.
[EXAMPLE]: Transferring VHF memory channel 3 to 20.
M/C
SCN
MAIN
MAIN
6.340
SCP
14
Select memory
V/M
channel
H
M I D - L O M
TS
CHG/L
S.MW
MAIN
MW
MAIN MAIN
6.010
SCP EDIT
momentarily
14
V/M TON
3 H
M I D - L O
DUP
TS
MEMORY/CALL CHANNELS
Transferring memory
contents to another memory
q Select memory mode with the desired band's [M/C].
• Push [CHG/L] if [M/C] is not displayed.
• "!" appears when memory mode is selected.
w Set the desired memory channel with the desired band's
tuning dial.
e Push the desired band's [S.MW] momentarily to indicate
memory channels.
• Push [CHG/L] if [S.MW] is not displayed.
• Push [S.MW] for 2 sec. to transfer the memory channel contents
to VFO.
r Rotate the tuning dial to select the desired channel.
• Call channel (C), VFO (- -) and scan edges (1A – 3B), as well as
regular memory channels, can be transferred in this way.
t Push [
MW] for 2 sec. to transfer.
(S.MW)
MAIN
MAIN
5.
EDIT
TON
- -
M M I D - L O
DUP
blank channel
S.MW
MW
MAIN
MAIN
6.340
EDIT
for 2 sec.
14
TON
20
M M I D - L O
DUP
7
20
M
33
