4
FREQUENCY SETTING

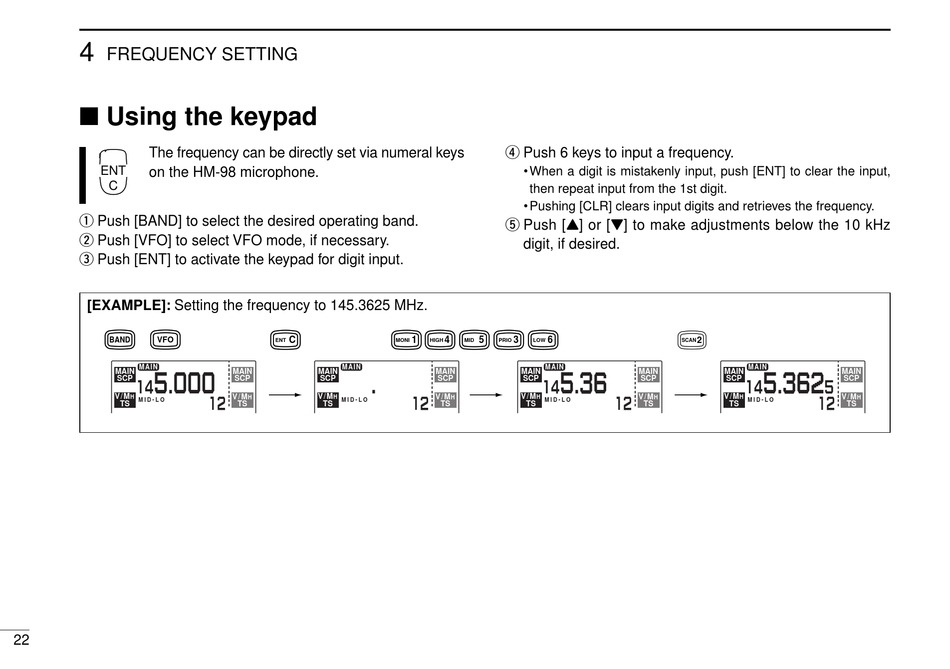

Using the keypad

The frequency can be directly set via numeral keys
ENT
on the HM-98 microphone.
C
q Push [BAND] to select the desired operating band.
w Push [VFO] to select VFO mode, if necessary.
e Push [ENT] to activate the keypad for digit input.
[EXAMPLE]: Setting the frequency to 145.3625 MHz.
BAND VFO
MAIN
MAIN
5.000
SCP
14
V/M
H
M I D - L O
TS
22
C
ENT
MAIN
MAIN MAIN
5.
SCP SCP
V/M
V/M
12 H H
M I D - L O
TS TS
r Push 6 keys to input a frequency.
• When a digit is mistakenly input, push [ENT] to clear the input,
then repeat input from the 1st digit.
• Pushing [CLR] clears input digits and retrieves the frequency.
t Push [Y] or [Z] to make adjustments below the 10 kHz
digit, if desired.
1 4 5 3 6
MONI HIGH MID PRIO LOW
MAIN
MAIN MAIN
5.36
SCP SCP
14
V/M
V/M
12 H H
M I D - L O
TS TS
2
SCAN
MAIN
MAIN MAIN
5.362
SCP SCP
14
V/M
V/M
12 H H
M I D - L O
TS TS
MAIN
SCP
5
V/M
12 H
TS
