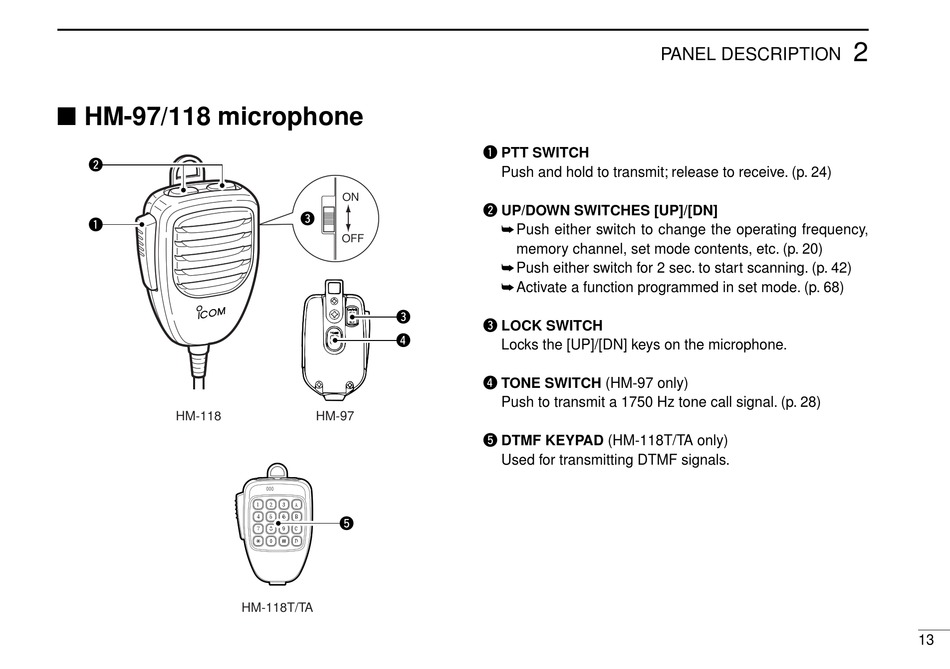

HM-97/118 microphone

w
q
HM-118
1
4
7
HM-118T/TA
ON
e
OFF
e
r
HM-97
2 3 A
5 6 B t
8 9 C
0 D
PANEL DESCRIPTION
q PTT SWITCH
Push and hold to transmit; release to receive. (p. 24)
w UP/DOWN SWITCHES [UP]/[DN]
Push either switch to change the operating frequency,
memory channel, set mode contents, etc. (p. 20)
Push either switch for 2 sec. to start scanning. (p. 42)
Activate a function programmed in set mode. (p. 68)
e LOCK SWITCH
Locks the [UP]/[DN] keys on the microphone.
r TONE SWITCH (HM-97 only)
Push to transmit a 1750 Hz tone call signal. (p. 28)
t DTMF KEYPAD (HM-118T/TA only)
Used for transmitting DTMF signals.
