Memory Name Indication; Hm-98 [F-1]/[F-2] Keys - Icom IC-2800H Instruction Manual

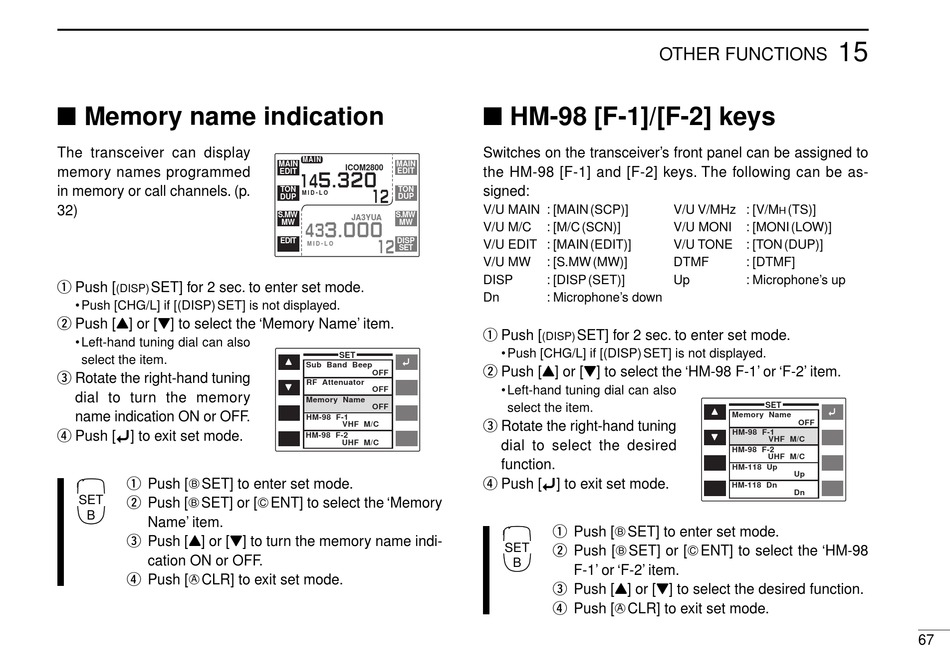

Memory name indication

The transceiver can display
memory names programmed
in memory or call channels. (p.
32)
q Push [
SET] for 2 sec. to enter set mode.
(DISP)
• Push [CHG/L] if [(DISP) SET] is not displayed.
w Push [Y] or [Z] to select the 'Memory Name' item.
• Left-hand tuning dial can also
select the item.
e Rotate the right-hand tuning
dial to turn the memory
name indication ON or OFF.
r Push [ï] to exit set mode.
q Push [F SET] to enter set mode.
SET
w Push [F SET] or [G ENT] to select the 'Memory
B
Name' item.
e Push [Y] or [Z] to turn the memory name indi-
cation ON or OFF.
r Push [E CLR] to exit set mode.
MAIN
MAIN MAIN
ICOM2800
EDIT EDIT
5.320
14
TON TON
12
M I D - L O
DUP DUP
S.MW S.MW
JA3YUA
MW MW
3.000
43
DISP
EDIT
12
M I D - L O
SET
SET
Y ï
Sub Band Beep
OFF
RF Attenuator
Z
OFF
Memory Name
OFF
HM-98 F-1
VHF M/C
HM-98 F-2
UHF M/C
OTHER FUNCTIONS

HM-98 [F-1]/[F-2] keys

Switches on the transceiver's front panel can be assigned to
the HM-98 [F-1] and [F-2] keys. The following can be as-
signed:
V/U MAIN : [MAIN (SCP)]
V/U M/C : [M/C (SCN)]
V/U EDIT : [MAIN (EDIT)]
V/U MW : [S.MW (MW)]
DISP : [DISP (SET)]
Dn : Microphone's down
q Push [
SET] for 2 sec. to enter set mode.
(DISP)
• Push [CHG/L] if [(DISP) SET] is not displayed.
w Push [Y] or [Z] to select the 'HM-98 F-1' or 'F-2' item.
• Left-hand tuning dial can also
select the item.
e Rotate the right-hand tuning
dial to select the desired
function.
r Push [ï] to exit set mode.
q Push [F SET] to enter set mode.
SET
w Push [F SET] or [G ENT] to select the 'HM-98
B
F-1' or 'F-2' item.
e Push [Y] or [Z] to select the desired function.
r Push [E CLR] to exit set mode.
15
V/U V/MHz : [V/M (TS)]
H
V/U MONI : [MONI (LOW)]
V/U TONE : [TON (DUP)]
DTMF : [DTMF]
Up : Microphone's up
SET
Y ï
Memory Name
OFF
HM-98 F-1
Z
VHF M/C
HM-98 F-2
UHF M/C
HM-118 Up
Up
HM-118 Dn
Dn
67
