3

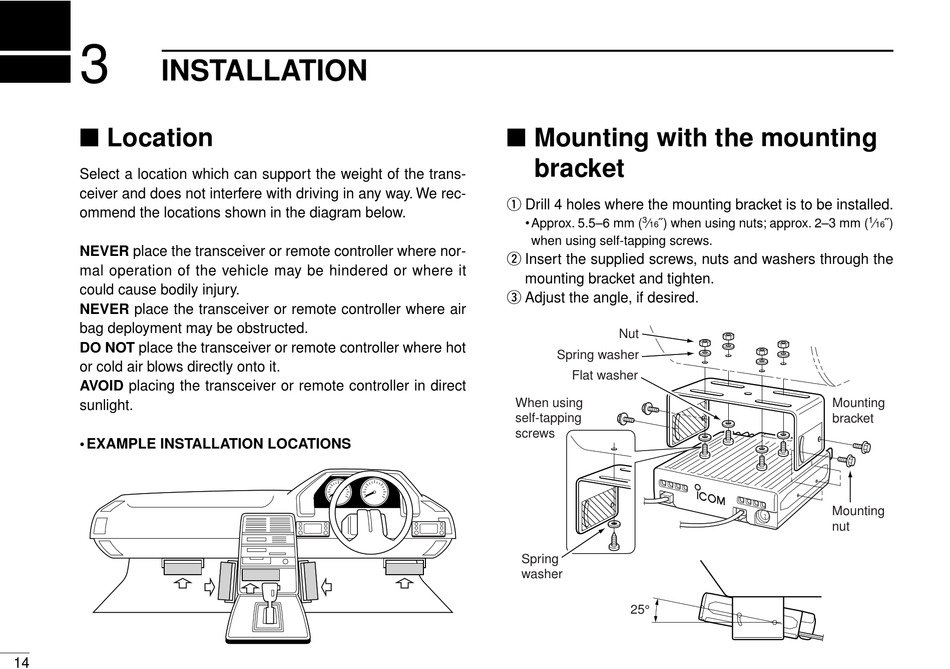

INSTALLATION

Location

Select a location which can support the weight of the trans-
ceiver and does not interfere with driving in any way. We rec-
ommend the locations shown in the diagram below.
NEVER place the transceiver or remote controller where nor-
mal operation of the vehicle may be hindered or where it
could cause bodily injury.
NEVER place the transceiver or remote controller where air
bag deployment may be obstructed.
DO NOT place the transceiver or remote controller where hot
or cold air blows directly onto it.
AVOID placing the transceiver or remote controller in direct
sunlight.
• EXAMPLE INSTALLATION LOCATIONS
14
Mounting with the mounting
bracket
q Drill 4 holes where the mounting bracket is to be installed.
3
• Approx. 5.5–6 mm ( ⁄ ˝) when using nuts; approx. 2–3 mm (
16
when using self-tapping screws.
w Insert the supplied screws, nuts and washers through the
mounting bracket and tighten.
e Adjust the angle, if desired.
Nut
Spring washer
Flat washer
When using
self-tapping
screws
Spring
washer
25
1
⁄ ˝)
16
Mounting
bracket
Mounting
nut
