15
OTHER FUNCTIONS

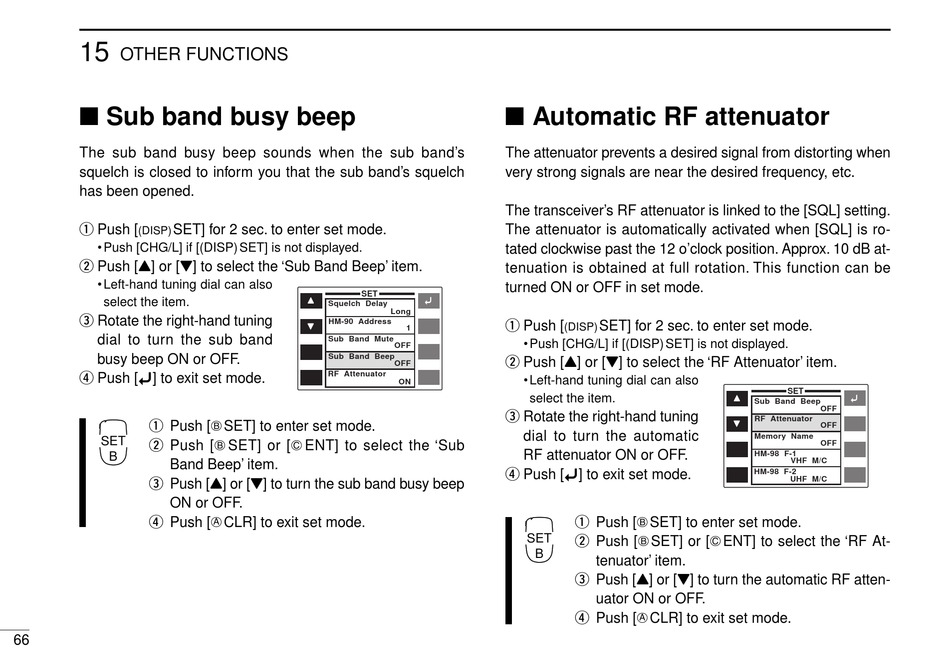

Sub band busy beep

The sub band busy beep sounds when the sub band's
squelch is closed to inform you that the sub band's squelch
has been opened.
q Push [
SET] for 2 sec. to enter set mode.
(DISP)
• Push [CHG/L] if [(DISP) SET] is not displayed.
w Push [Y] or [Z] to select the 'Sub Band Beep' item.
• Left-hand tuning dial can also
select the item.
e Rotate the right-hand tuning
dial to turn the sub band
busy beep ON or OFF.
r Push [ï] to exit set mode.
q Push [F SET] to enter set mode.
SET
w Push [F SET] or [G ENT] to select the 'Sub
B
Band Beep' item.
e Push [Y] or [Z] to turn the sub band busy beep
ON or OFF.
r Push [E CLR] to exit set mode.
66
SET
Y ï
Squelch Delay
Long
HM-90 Address
Z
1
Sub Band Mute
OFF
Sub Band Beep
OFF
RF Attenuator
ON

Automatic RF attenuator

The attenuator prevents a desired signal from distorting when
very strong signals are near the desired frequency, etc.
The transceiver's RF attenuator is linked to the [SQL] setting.
The attenuator is automatically activated when [SQL] is ro-
tated clockwise past the 12 o'clock position. Approx. 10 dB at-
tenuation is obtained at full rotation. This function can be
turned ON or OFF in set mode.
q Push [
SET] for 2 sec. to enter set mode.
(DISP)
• Push [CHG/L] if [(DISP) SET] is not displayed.
w Push [Y] or [Z] to select the 'RF Attenuator' item.
• Left-hand tuning dial can also
select the item.
e Rotate the right-hand tuning
dial to turn the automatic
RF attenuator ON or OFF.
r Push [ï] to exit set mode.
q Push [F SET] to enter set mode.
SET w Push [F SET] or [G ENT] to select the 'RF At-
B
tenuator' item.
e Push [Y] or [Z] to turn the automatic RF atten-
uator ON or OFF.
r Push [E CLR] to exit set mode.
SET
ï
Y
Sub Band Beep
OFF
RF Attenuator
Z
OFF
Memory Name
OFF
HM-98 F-1
VHF M/C
HM-98 F-2
UHF M/C
