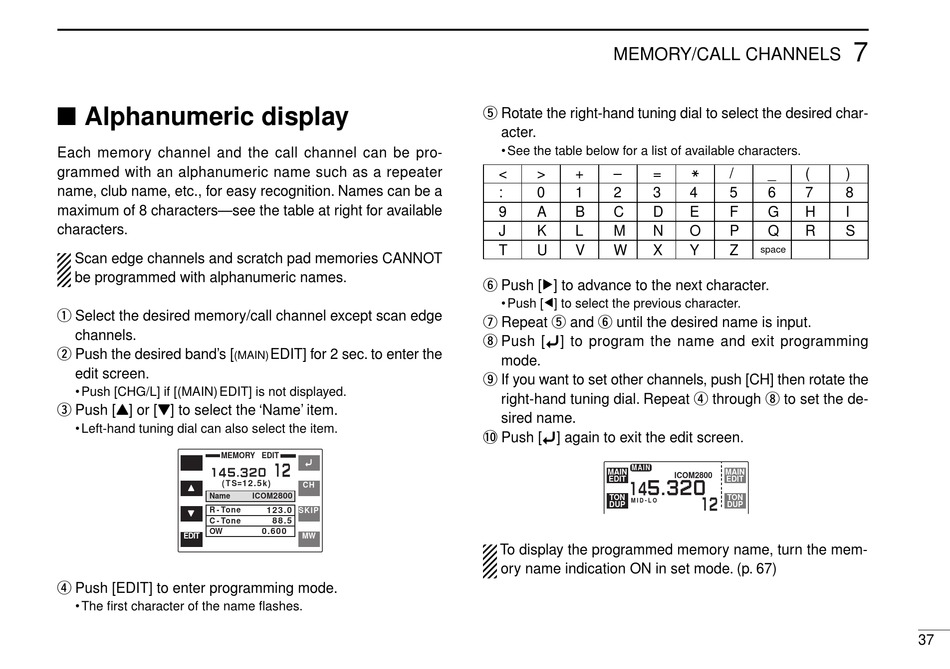

Alphanumeric display

Each memory channel and the call channel can be pro-
grammed with an alphanumeric name such as a repeater
name, club name, etc., for easy recognition. Names can be a
maximum of 8 characters—see the table at right for available
characters.
Scan edge channels and scratch pad memories CANNOT
be programmed with alphanumeric names.
q Select the desired memory/call channel except scan edge
channels.
w Push the desired band's [
(MAIN)
edit screen.
• Push [CHG/L] if [(MAIN) EDIT] is not displayed.
e Push [Y] or [Z] to select the 'Name' item.
• Left-hand tuning dial can also select the item.
MEMORY EDIT
145.320
( T S = 12.5k)
Y
Name
R - Tone
Z
C - Tone
OW
EDIT
r Push [EDIT] to enter programming mode.
• The first character of the name flashes.
EDIT] for 2 sec. to enter the
ï
12
CH
ICOM2800
12 3.0 SKIP
8 8.5
0.6000
MW
MEMORY/CALL CHANNELS
t Rotate the right-hand tuning dial to select the desired char-
acter.
• See the table below for a list of available characters.
< > + – =
: 0 1 2 3
9 A B C D
J K L M N
T U V W X
y Push [≈] to advance to the next character.
• Push [Ω] to select the previous character.
u Repeat t and y until the desired name is input.
i Push [ï] to program the name and exit programming
mode.
o If you want to set other channels, push [CH] then rotate the
right-hand tuning dial. Repeat r through i to set the de-
sired name.
!0 Push [ï] again to exit the edit screen.
MAIN
MAIN
EDIT
5.320
14
TON
M I D - L O
DUP
To display the programmed memory name, turn the mem-
ory name indication ON in set mode. (p. 67)
7
M / _ ( )
4 5 6 7 8
E F G H I
O P Q R S
Y Z
space
MAIN
ICOM2800
EDIT
TON
12
DUP
37
