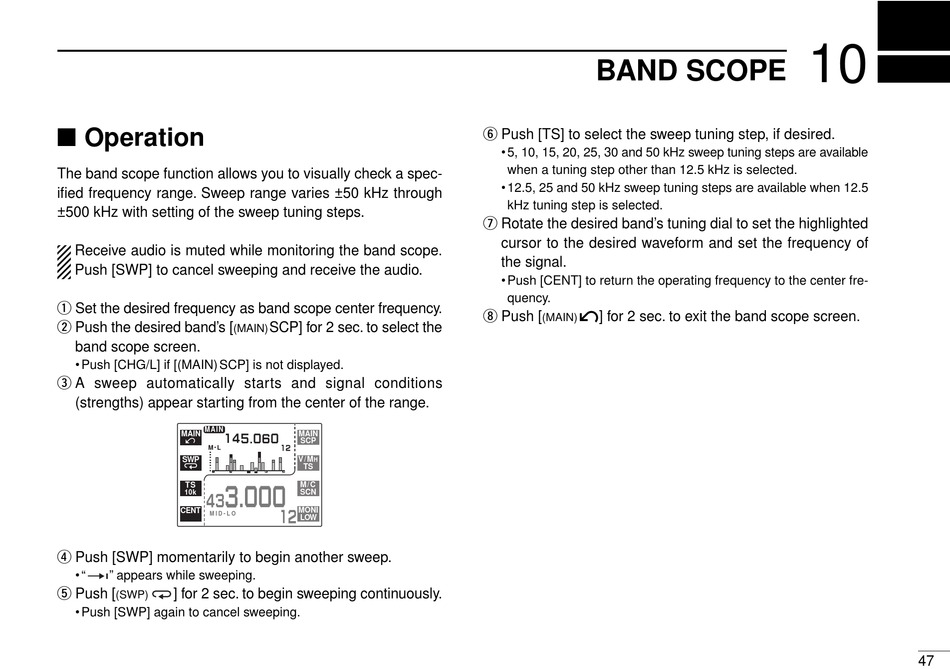

Operation

The band scope function allows you to visually check a spec-
ified frequency range. Sweep range varies ±50 kHz through
±500 kHz with setting of the sweep tuning steps.
Receive audio is muted while monitoring the band scope.
Push [SWP] to cancel sweeping and receive the audio.
q Set the desired frequency as band scope center frequency.
w Push the desired band's [
(MAIN)
band scope screen.
• Push [CHG/L] if [(MAIN) SCP] is not displayed.
e A sweep automatically starts and signal conditions
(strengths) appear starting from the center of the range.
MAIN
MAIN
145.060
M - L
SWP
TS
3.000
10k
43
CENT
M I D - L O
r Push [SWP] momentarily to begin another sweep.
• " " appears while sweeping.
t Push [
] for 2 sec. to begin sweeping continuously.
(SWP)
• Push [SWP] again to cancel sweeping.
SCP] for 2 sec. to select the
MAIN MAIN
SCP SCP
12
V/M
H
TS
M/C
SCN
MONI
12
LOW

BAND SCOPE

y Push [TS] to select the sweep tuning step, if desired.
• 5, 10, 15, 20, 25, 30 and 50 kHz sweep tuning steps are available
when a tuning step other than 12.5 kHz is selected.
• 12.5, 25 and 50 kHz sweep tuning steps are available when 12.5
kHz tuning step is selected.
u Rotate the desired band's tuning dial to set the highlighted
cursor to the desired waveform and set the frequency of
the signal.
• Push [CENT] to return the operating frequency to the center fre-
quency.
i Push [
í] for 2 sec. to exit the band scope screen.
(MAIN)
10
47
