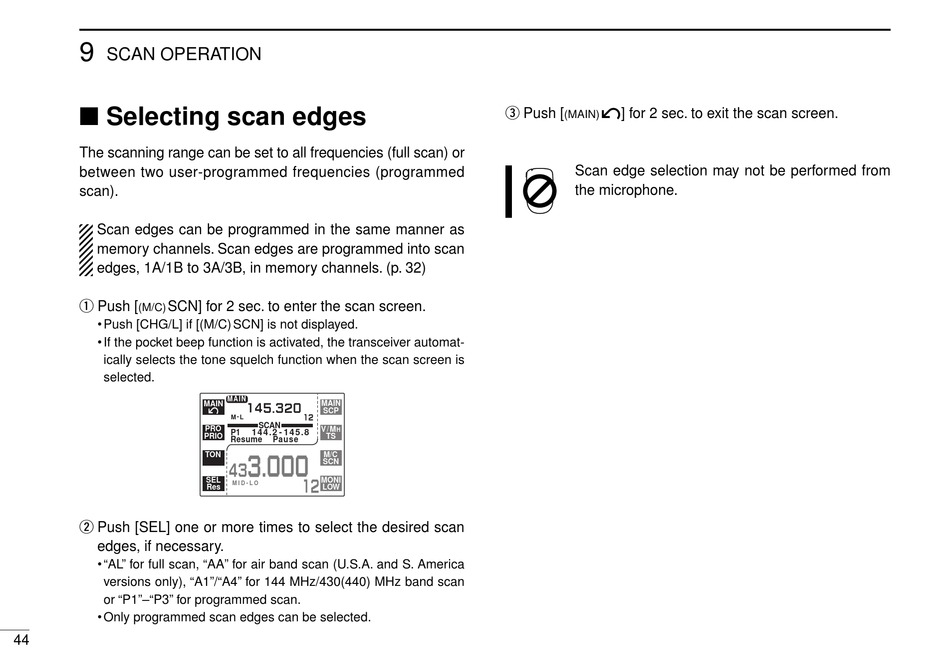

Selecting Scan Edges - Icom IC-2800H Instruction Manual

9
SCAN OPERATION

Selecting scan edges

The scanning range can be set to all frequencies (full scan) or
between two user-programmed frequencies (programmed
scan).
Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 1A/1B to 3A/3B, in memory channels. (p. 32)
q Push [
SCN] for 2 sec. to enter the scan screen.
(M/C)
• Push [CHG/L] if [(M/C) SCN] is not displayed.
• If the pocket beep function is activated, the transceiver automat-
ically selects the tone squelch function when the scan screen is
selected.
w Push [SEL] one or more times to select the desired scan
edges, if necessary.
• "AL" for full scan, "AA" for air band scan (U.S.A. and S. America
versions only), "A1"/"A4" for 144 MHz/430(440) MHz band scan
or "P1"–"P3" for programmed scan.
• Only programmed scan edges can be selected.
44
MAIN
MAIN MAIN
145.320
SCP
í
12
M - L
SCAN
PRO V/M
H
P1 1 4 4 . 2 - 1 4 5 . 8
PRIO TS
Resume Pause
TON M/C
3.000
SCN
43
SEL MONI
12
M I D - L O
Res LOW
e Push [
í] for 2 sec. to exit the scan screen.
(MAIN)
Scan edge selection may not be performed from
the microphone.
