13

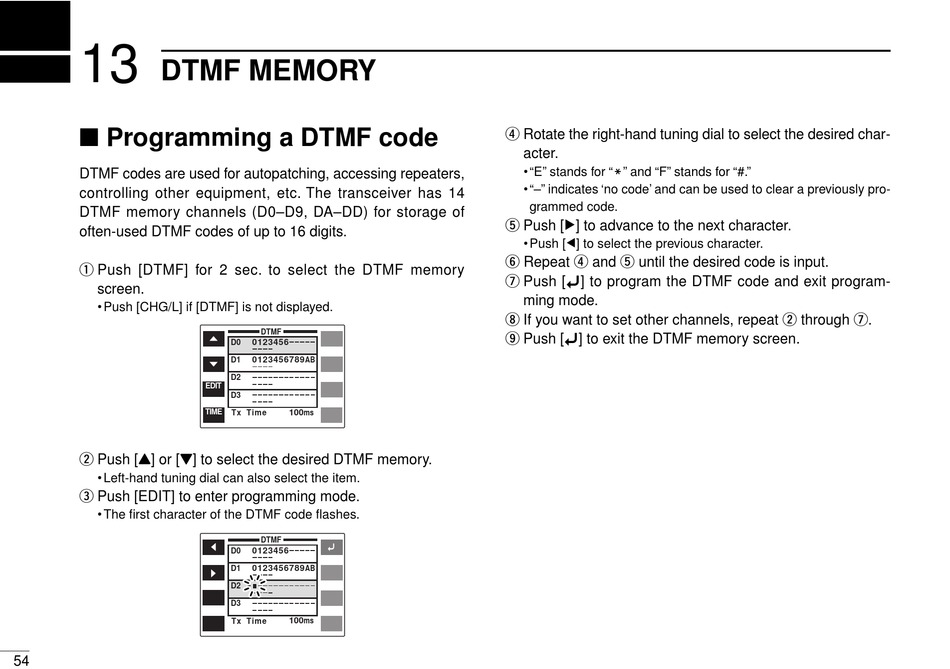

DTMF MEMORY

Programming a DTMF code

DTMF codes are used for autopatching, accessing repeaters,
controlling other equipment, etc. The transceiver has 14
DTMF memory channels (D0–D9, DA–DD) for storage of
often-used DTMF codes of up to 16 digits.
q Push [DTMF] for 2 sec. to select the DTMF memory
screen.
• Push [CHG/L] if [DTMF] is not displayed.
w Push [Y] or [Z] to select the desired DTMF memory.
• Left-hand tuning dial can also select the item.
e Push [EDIT] to enter programming mode.
• The first character of the DTMF code flashes.
54
DTMF
D0 0123456
D1 0123456789AB
D2
EDIT
D3
TIME Tx Time 100ms
DTMF
ï
D0 0123456
D1 0123456789AB
D2
D3
100ms
Tx Time
r Rotate the right-hand tuning dial to select the desired char-
acter.
• "E" stands for "M" and "F" stands for "#."
• "–" indicates 'no code' and can be used to clear a previously pro-
grammed code.
t Push [≈] to advance to the next character.
• Push [Ω] to select the previous character.
y Repeat r and t until the desired code is input.
u Push [ï] to program the DTMF code and exit program-
ming mode.
i If you want to set other channels, repeat w through u.
o Push [ï] to exit the DTMF memory screen.
