WIRELESS OPERATION

EX-1759 installation

The EX-1759
INFRARED RECEIVER
ent purposes depending on the HM-90 charger. This is be-
cause the EX-1759 has both an infrared receiver and a
microphone connector which contains microphone charging
capabilities.
When using the IC-2800H main unit
Attach the EX-1759 to a suitable location for receiving infrared
signals, e.g. sun visor, etc.
When using the connector for a microphone charger
Attach the EX-1759 to a suitable location for receiving infrared
signals and where it can be connected to cable, e.g. the con-
sole, etc.
DO NOT attach the EX-1759 where it will be subject to di-
rect sunlight as it cannot detect infrared signals under such
conditions.
58
can be installed for 2 differ-
EX-1759

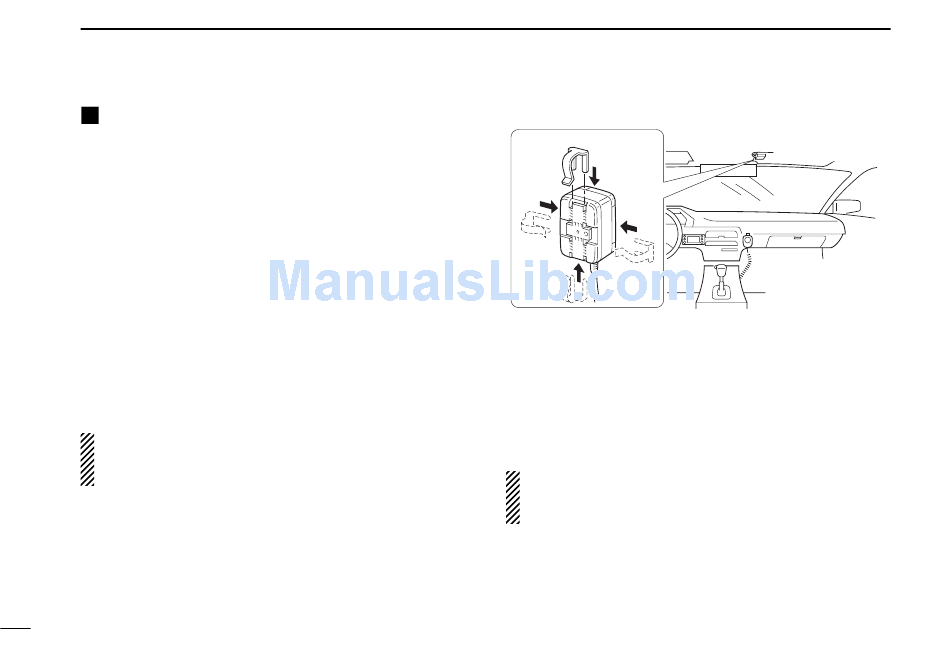

The installation clip can be oriented in 1 of 4 ways.
Optional infrared sub receiver
An optional EX-1513
INFRARED SUB RECEIVER
increase the remote control reliability and extend the control-
lable area. Connect the EX-1513 to the inside connector of
the EX-1759.
The HM-98 can be connected and used with the EX-1759,
however, the optional wireless microphone cannot be used
in such a case.
(When using the
main unit for mic
charging)
(When using the mic
connector for mic
charging.)
is available to
