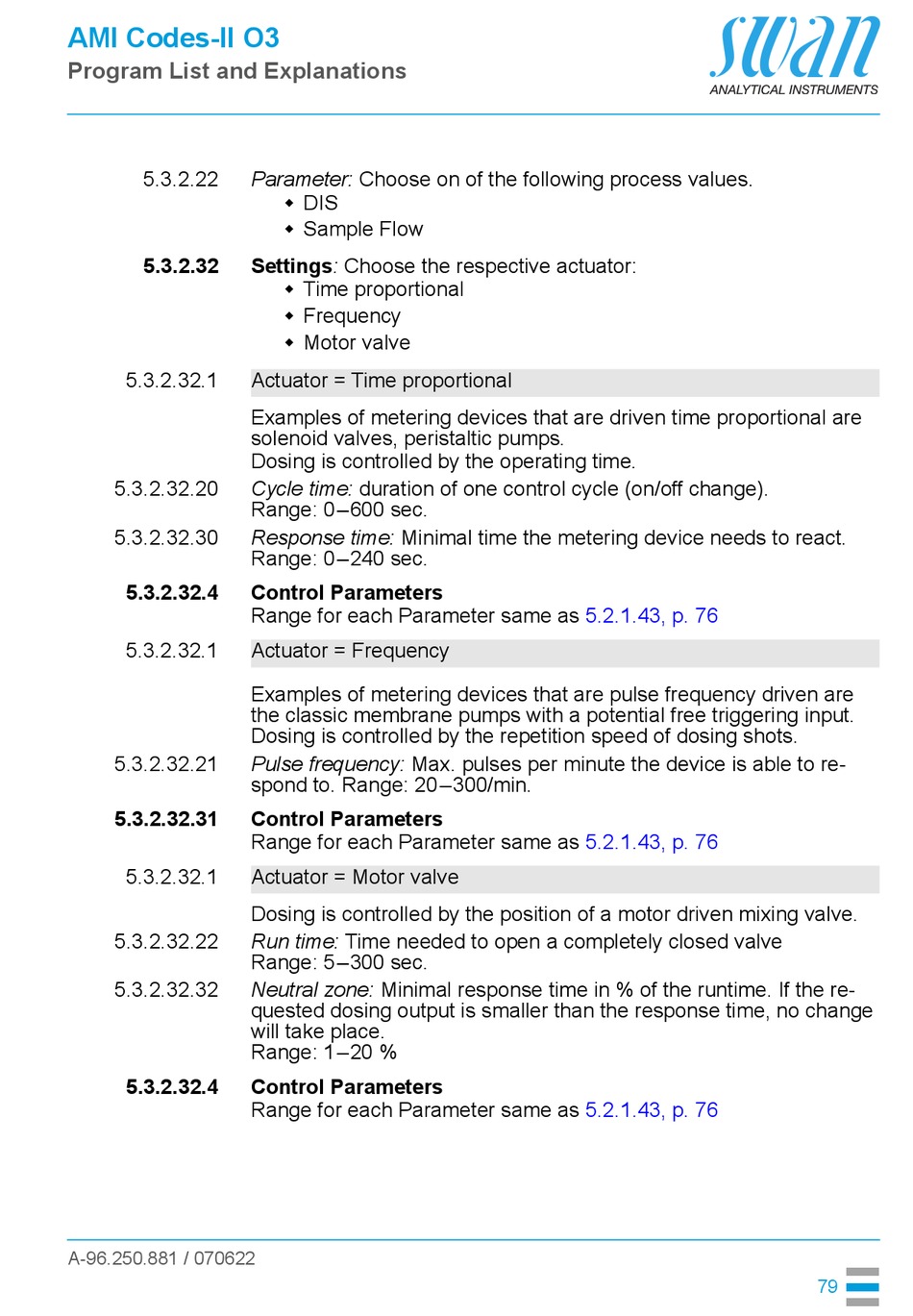

AMI Codes-II O3
Program List and Explanations
5.3.2.22
5.3.2.32
5.3.2.32.1
5.3.2.32.20
5.3.2.32.30
5.3.2.32.4
5.3.2.32.1
5.3.2.32.21
5.3.2.32.31
5.3.2.32.1
5.3.2.32.22
5.3.2.32.32
5.3.2.32.4
A-96.250.881 / 070622
Parameter: Choose on of the following process values.
 DIS
 Sample Flow
Settings: Choose the respective actuator:
 Time proportional
 Frequency
 Motor valve
Actuator = Time proportional
Examples of metering devices that are driven time proportional are
solenoid valves, peristaltic pumps.
Dosing is controlled by the operating time.
Cycle time: duration of one control cycle (on/off change).
Range: 0–600 sec.
Response time: Minimal time the metering device needs to react.
Range: 0–240 sec.
Control Parameters
Range for each Parameter same as
Actuator = Frequency
Examples of metering devices that are pulse frequency driven are
the classic membrane pumps with a potential free triggering input.
Dosing is controlled by the repetition speed of dosing shots.
Pulse frequency: Max. pulses per minute the device is able to re-
spond to. Range: 20–300/min.
Control Parameters
Range for each Parameter same as
Actuator = Motor valve
Dosing is controlled by the position of a motor driven mixing valve.
Run time: Time needed to open a completely closed valve
Range: 5–300 sec.
Neutral zone: Minimal response time in % of the runtime. If the re-
quested dosing output is smaller than the response time, no change
will take place.
Range: 1–20 %
Control Parameters
Range for each Parameter same as
5.2.1.43, p. 76
5.2.1.43, p. 76
5.2.1.43, p. 76
79
