AMI Codes-II O3
Maintenance
Cleaning
6.7.2
A-96.250.881 / 070622
1 Switch off the instrument according to instructions in
eration for Maintenance, p. 42
2 Remove the constant head cover [A].
3 Remove the constant head tube [C] from the flow cell block.
4 Pull the overflow tube [B] out of the flow cell block [D].
5 Clean all acrylic parts with a soft brush (bottle cleaner) and soapy
water.
6 Rinse well with demineralized water.

Assemble the Flow Cell

Level
1 Replace the gasket [D] before reassembling the flow cell.
Note: A film of teflon paste (e.g. Fomblin from Solvay Solexis)
on the gaskets improves tightness and life time.
2 Push the overflow tube [B] through the flow cell block as far as it
reaches the drain.
3 Install the constant head tube [C] onto the flow cell block.
4 Put the cover onto the constant head tube.
5 Align the overflow tube with the upper level mark.

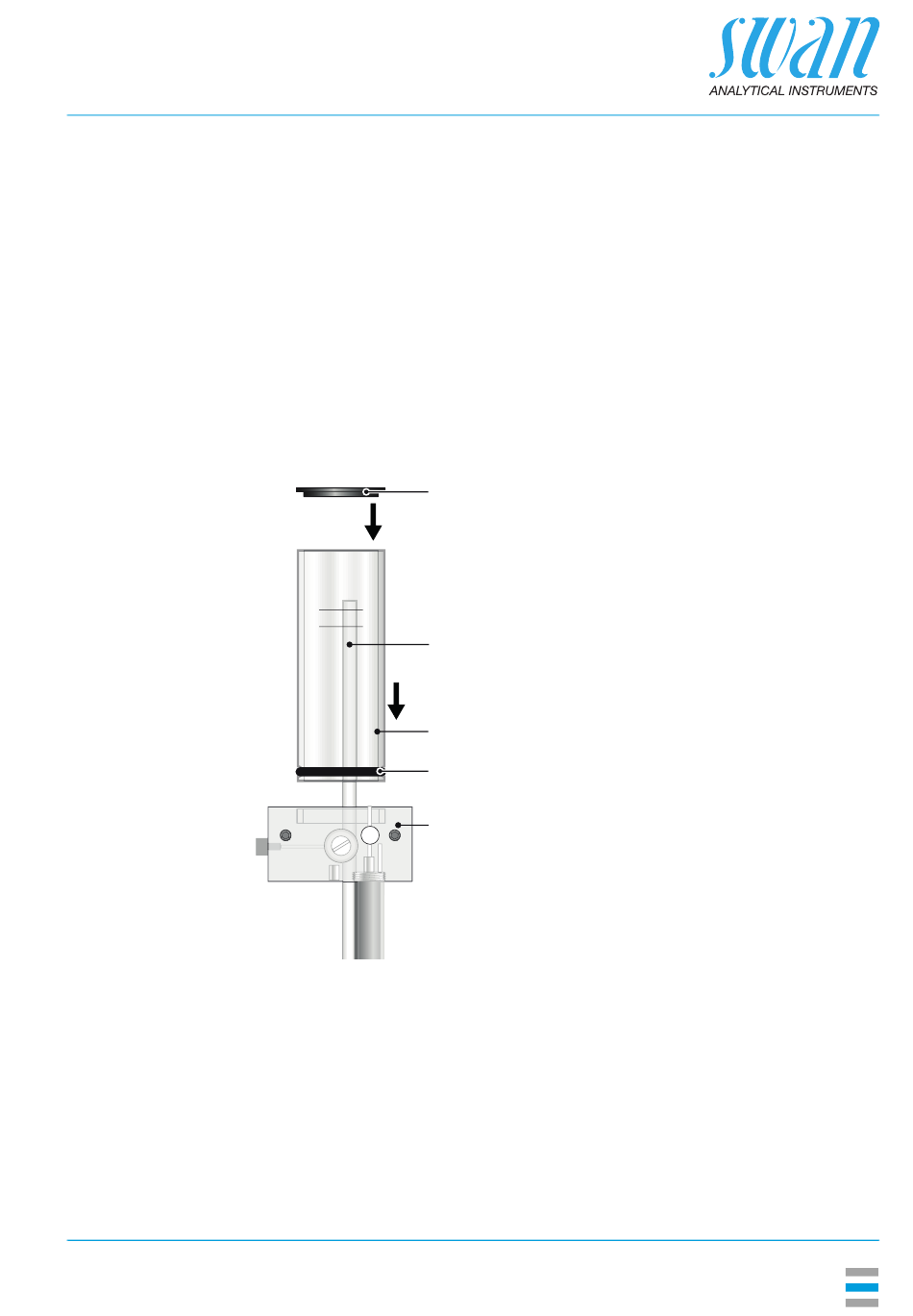

A Constant head cover
A
B Overflow tube
C
Constant head tube
D Gasket
E
Flow cell block
B
C
D
E
Stop of Op-
53
