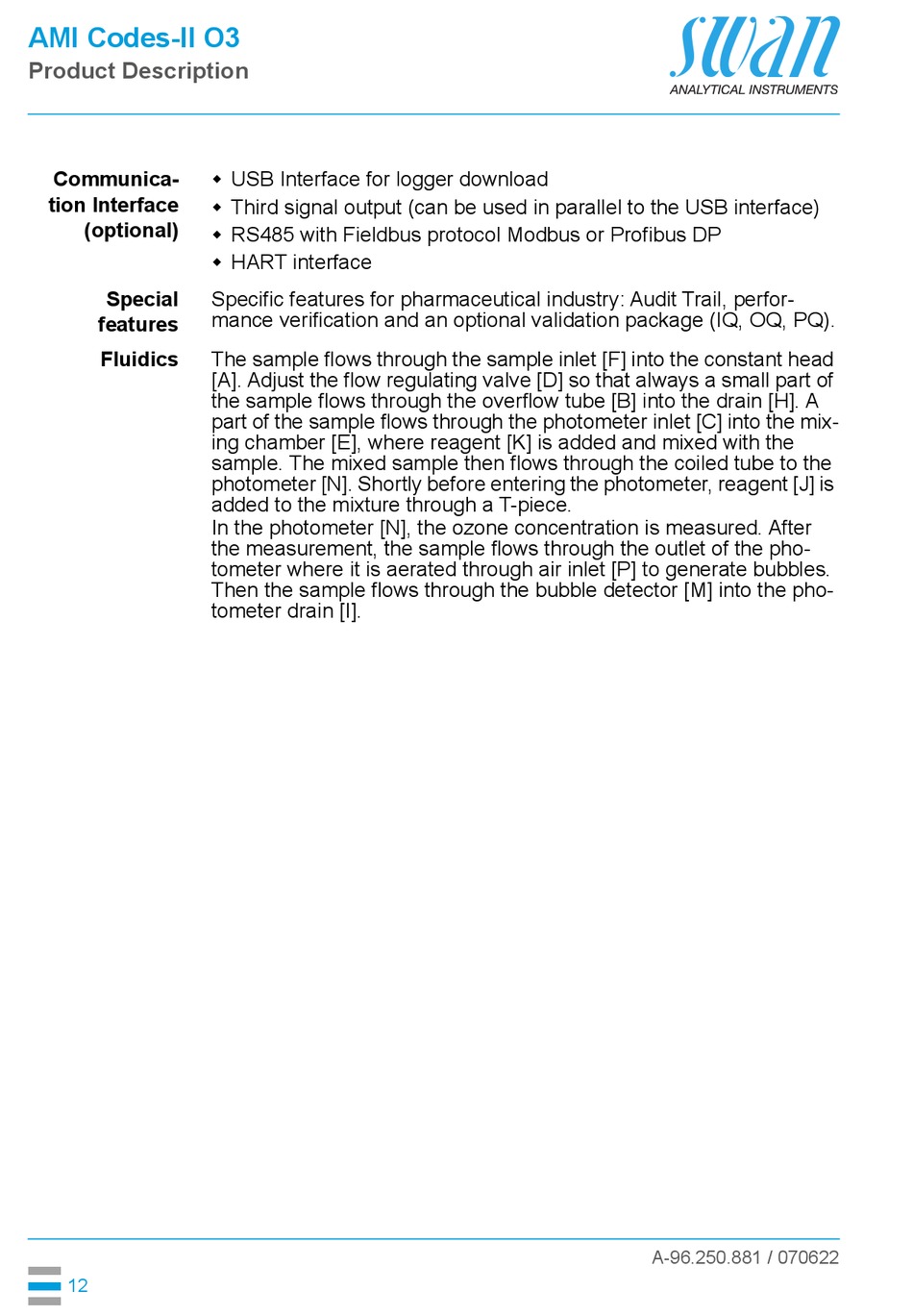

Swan Analytical Instruments AMI Codes-II O3 Operator's Manual page 12

AMI Codes-II O3
Product Description
Communica-
tion Interface
(optional)
Special
features
Fluidics
12
 USB Interface for logger download
 Third signal output (can be used in parallel to the USB interface)
 RS485 with Fieldbus protocol Modbus or Profibus DP
 HART interface
Specific features for pharmaceutical industry: Audit Trail, perfor-
mance verification and an optional validation package (IQ, OQ, PQ).
The sample flows through the sample inlet [F] into the constant head
[A]. Adjust the flow regulating valve [D] so that always a small part of
the sample flows through the overflow tube [B] into the drain [H]. A
part of the sample flows through the photometer inlet [C] into the mix-
ing chamber [E], where reagent [K] is added and mixed with the
sample. The mixed sample then flows through the coiled tube to the
photometer [N]. Shortly before entering the photometer, reagent [J] is
added to the mixture through a T-piece.
In the photometer [N], the ozone concentration is measured. After
the measurement, the sample flows through the outlet of the pho-
tometer where it is aerated through air inlet [P] to generate bubbles.
Then the sample flows through the bubble detector [M] into the pho-
tometer drain [I].
A-96.250.881 / 070622
