AMI Codes-II O3
Maintenance
6.3.
Canister set up
A-96.250.881 / 070622

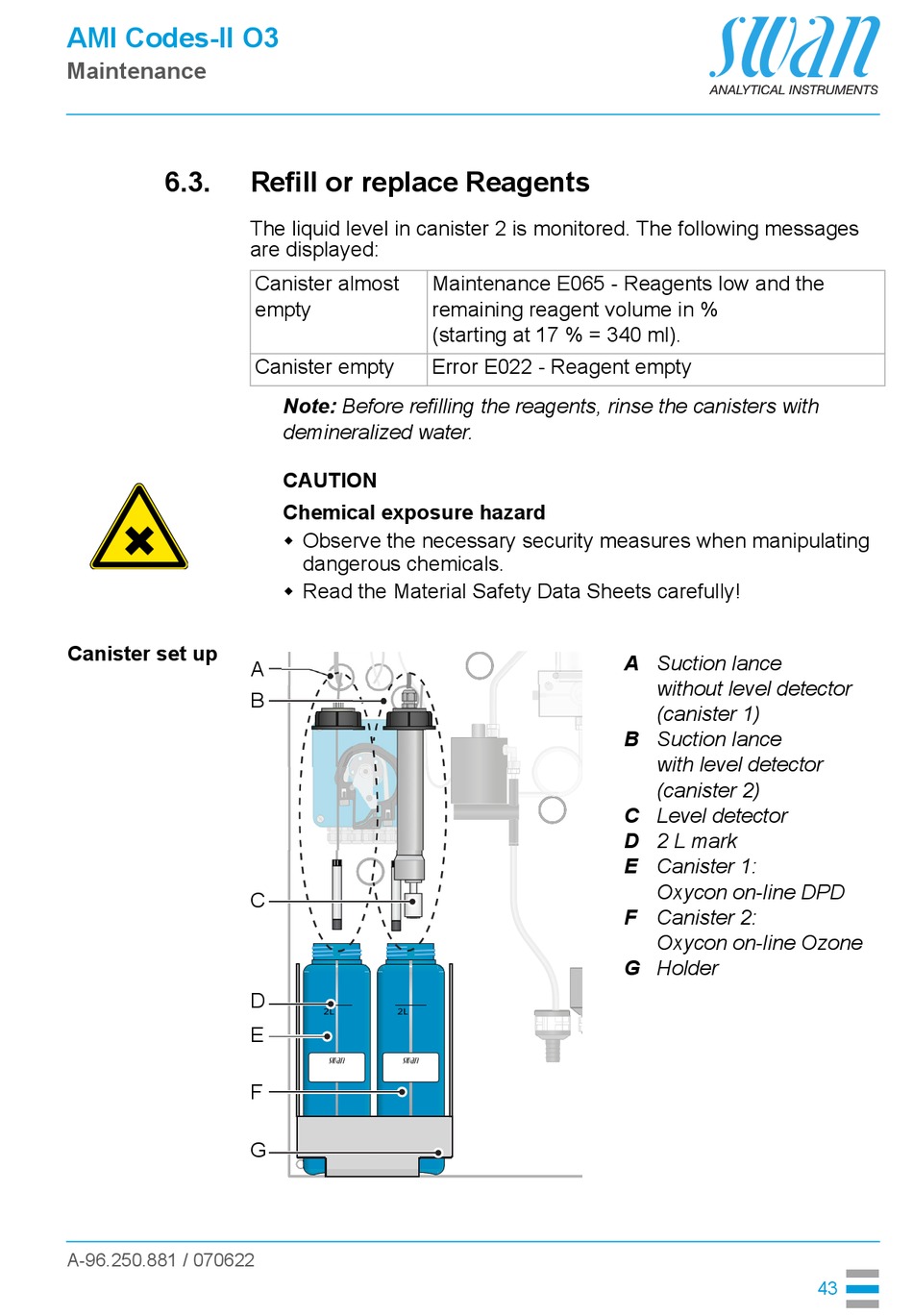

Refill or replace Reagents

The liquid level in canister 2 is monitored. The following messages
are displayed:
Canister almost
empty
Canister empty
Note: Before refilling the reagents, rinse the canisters with
demineralized water.
CAUTION
Chemical exposure hazard
 Observe the necessary security measures when manipulating
dangerous chemicals.
 Read the Material Safety Data Sheets carefully!
A
B
C
D
E
F
G
Maintenance E065 - Reagents low and the
remaining reagent volume in %
(starting at 17 % = 340 ml).
Error E022 - Reagent empty
A Suction lance
without level detector
(canister 1)
B Suction lance
with level detector
(canister 2)
C
Level detector
D 2 L mark
E Canister 1:
Oxycon on-line DPD
F Canister 2:
Oxycon on-line Ozone
G Holder
43
