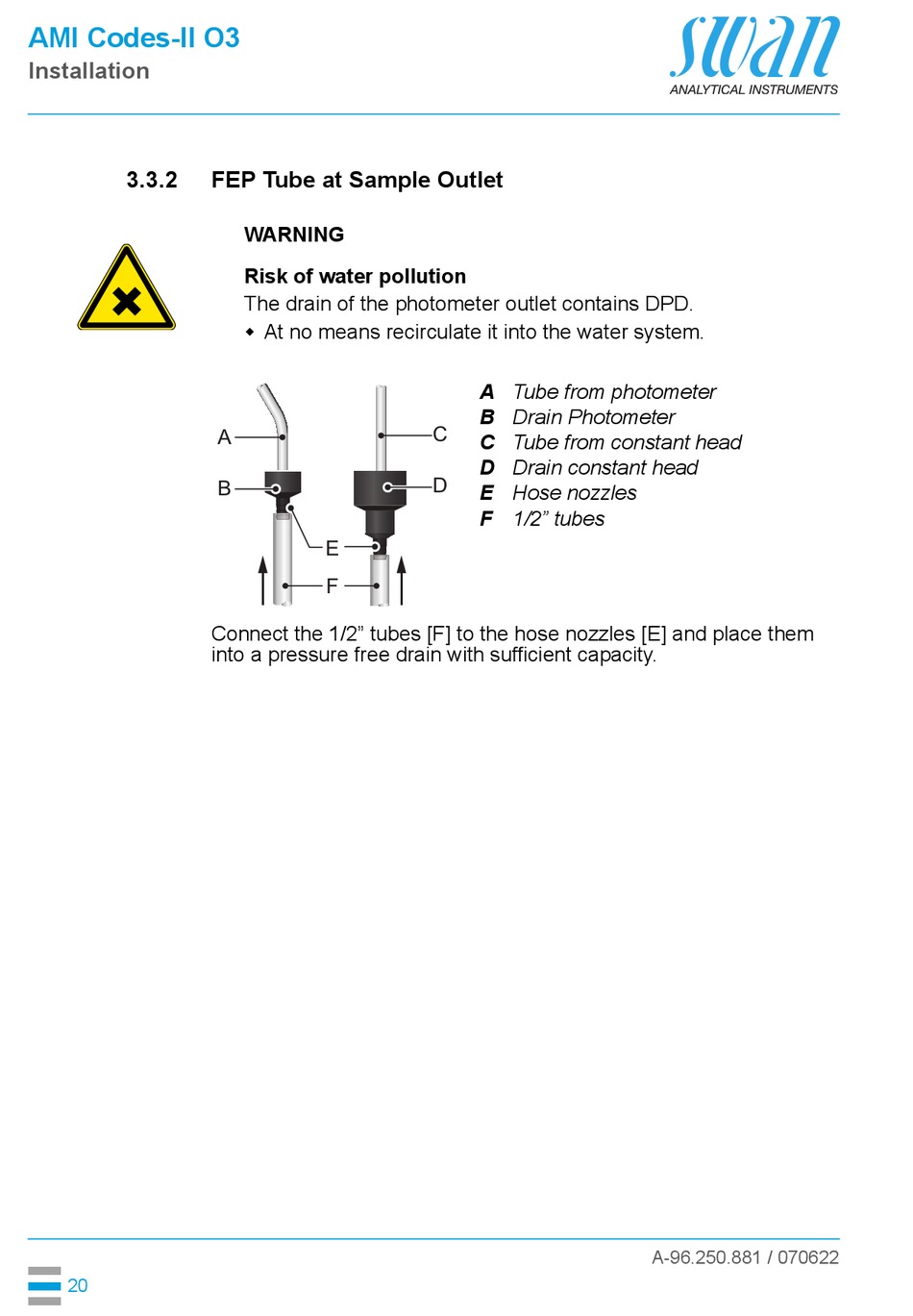

FEP Tube at Sample Outlet

WARNING
Risk of water pollution
The drain of the photometer outlet contains DPD.
 At no means recirculate it into the water system.
A
B
E
F
Connect the 1/2" tubes [F] to the hose nozzles [E] and place them
into a pressure free drain with sufficient capacity.
A Tube from photometer
B
Drain Photometer
C
C Tube from constant head
D Drain constant head
D
E
Hose nozzles
F 1/2" tubes
