AMI Codes-II O3
Maintenance
6.7.
6.7.1
52

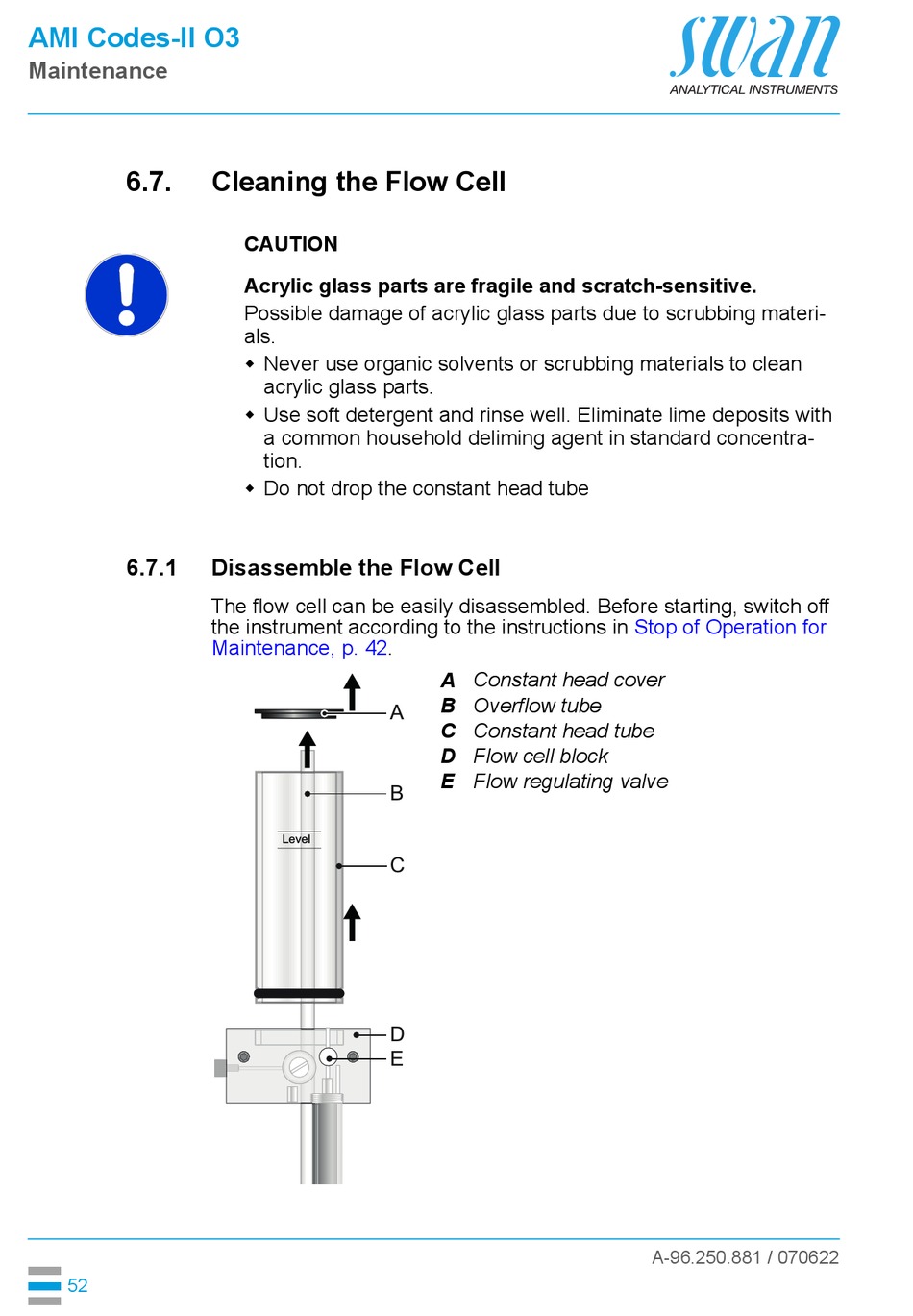

Cleaning the Flow Cell

CAUTION
Acrylic glass parts are fragile and scratch-sensitive.
Possible damage of acrylic glass parts due to scrubbing materi-
als.
 Never use organic solvents or scrubbing materials to clean
acrylic glass parts.
 Use soft detergent and rinse well. Eliminate lime deposits with
a common household deliming agent in standard concentra-
tion.
 Do not drop the constant head tube

Disassemble the Flow Cell

The flow cell can be easily disassembled. Before starting, switch off
the instrument according to the instructions in
Maintenance, p. 42.
Level
A Constant head cover
B
Overflow tube
A
C Constant head tube
D
Flow cell block
E Flow regulating valve
B
C
D
E
Stop of Operation for
A-96.250.881 / 070622
