AMI Codes-II O3
Maintenance
6.4.
46

Verification

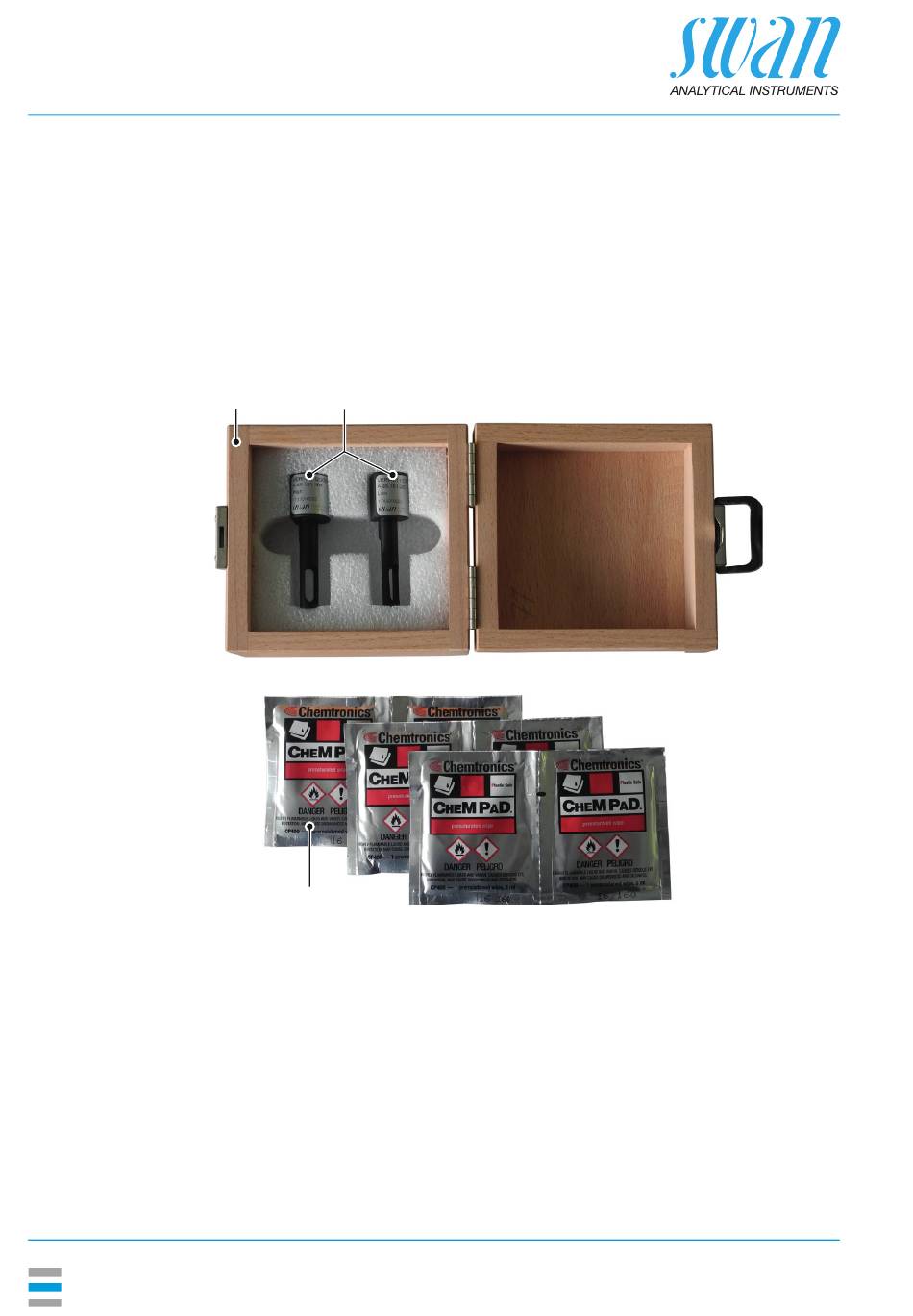

The verification kit contains two optical filters (labeled "low" and
"high") with certified reference absorptions of approximately 0.09 A
and 0.18 A, which corresponds to approximately 250 ppb and 500
ppb of ozone. The exact values are specified in the enclosed calibra-
tion certificate. The absorption of the filters were chosen to lie in the
center and at the upper limit of the measurement range of the AMI
Codes-II O3.
A B
C
A
Storage box
B Verification filters
The verification procedure confirms the photometric accuracy and
linearity of the core components of AMI Codes-II O3, i.e. photometer
and converter electronics, over the entire measurement range by
comparison of the absorbances measured by the AMI Codes-II O3
with the certified reference values. A maximum deviation of ±0.010A
is required for a successful photometer verification.
C Cleaning wipes for optical
surfaces
A-96.250.881 / 070622
